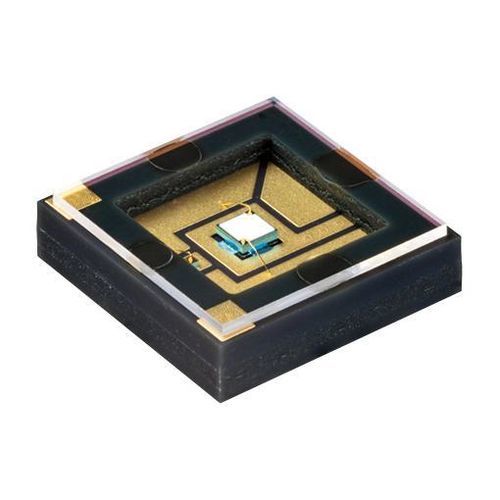

UV LED NCSU033D (365nm)

square

Overview
Package size: 6.8×6.8×1.9 mm
Color: UV-A (365 nm)

Product Version

• Previous: -
• Current: NCSU033D (365nm)
• Next: -

Product Information

• Production status: In production (Older model)
• Start of sales: April 2022
• Packaging quantity: 500 per reel

Downloads (available data files)

• Specification: NCSU033D(T)-E(6517A).pdf
• Ray data: NCSU033D_LightTools.zip, NCSU033D_Zemax.zip

Application Notes / Technical Documents (examples)

• Handling Precautions for the Nichia UV LEDs
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
• Thermal Design of NCSU03xD (U365, U385, U405) LEDs
• Thermal Design Considerations for the SMD Type UV LEDs

Technical specifications

• Model: NCSU033D
• Wavelength: 365 nm
• Package size: 6.8×6.8×1.9 mm
• Color / Type: UV-A (UVA)
• Production status: In production (Older model)
• Start of sales: April 2022
• Packaging quantity: 500 per reel
• Available technical files: specification PDF, thermal design notes, handling precautions, ray data archives
