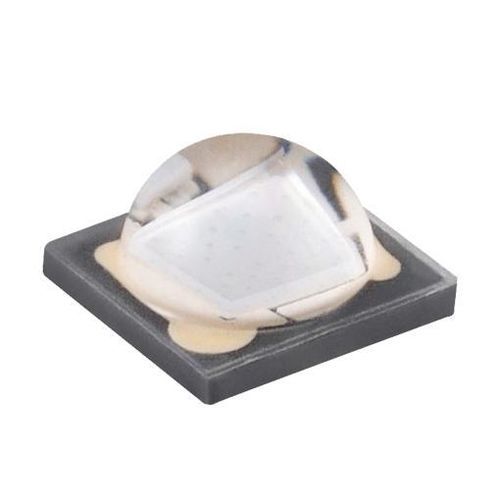

UV LED NVSU219C (405nm)

squarehigh-power

Product Name
NVSU219C (405nm)

Overview
Package size: 3.5×3.5×2 mm
Color: UVA (405 nm)
High-power ultraviolet LED suitable for applications requiring a 405 nm wavelength.

Product Version
Previous: -
Current: NVSU219C (405nm)
Next: -

Product Information

• Production status: Discontinued
• Start of sales: October 2021
• Packaging quantity: 3500 units per reel
• Lens manufacturer: ASAHI RUBBER INC.

Downloads / Available Data (names only)

• Specification PDF: NVSU219CT-E(5891A)U405x.pdf
• Specifications / Technical documents: Thermal Design of NVSU219C(U405) LEDs (PDF)
• Ray data (LightTools / Zemax) archives: NVSU219C(U405)_LightTools.zip, NVSU219C(U405)_Zemax.zip
• Handling and safety documents for UV LEDs (PDF)
• Other technical notes: Thermal design considerations for SMD type UV LEDs (PDF)

Application Notes (available titles)

• Handling Precautions for the Nichia UV LEDs
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
• Thermal Design of NVSU219C(U405) LEDs
• Thermal Design Considerations for the SMD Type UV LEDs

Remarks
This product is marked as discontinued. The page provides specification files, ray data archives and application/thermal-design notes relevant to UV LEDs.

Characteristics / Technical specifications

• Model: NVSU219C
• Commercial designation: NVSU219C (405nm)
• Wavelength: 405 nm (UVA)
• Package size: 3.5 × 3.5 × 2 mm
• Package type: SMD (surface-mount)
• Production status: Discontinued
• Start of sales: October 2021
• Packaging quantity: 3500 units per reel
• Available deliverables: product specification PDF, thermal design PDFs, handling precautions for UV LEDs, ray data (LightTools / Zemax)
