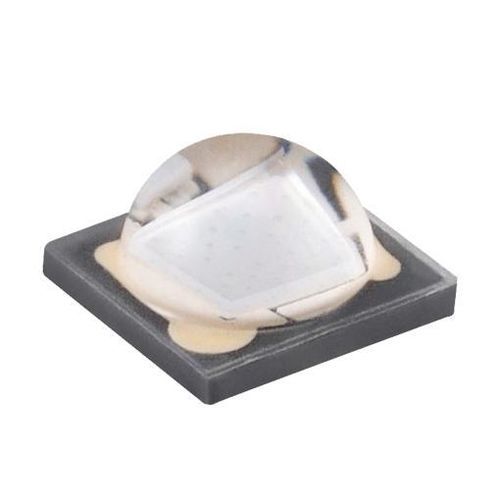

UV LED NVSU119C (405nm)

square

Overview
Compact UVA SMD LED designed for UV‑A applications with a peak wavelength at 405 nm. Suitable for OEM integration and automated pick-and-place assembly.

Package & Color
Package size: 3.5×3.5×2 mm
Emitted wavelength: UVA (405 nm)

Product Information

• Production Status: In production (Older model)
• Start of Sales: October 2021
• Packaging Quantity: 3500 per reel

Product Version
NVSU119C (405 nm)

Downloads (selected)

• NVSU119CT-E(4011I)U375x U385x U395x U405x.pdf (Technical specification)
• NVSU119C(U405)_LightTools.zip (near-field / ray data)
• NVSU119C(U405)_Zemax.zip (near-field / ray data)
• Thermal Design of NVSU119C(U375, U385, U395, U405) LEDs (application note)
• Handling Precautions for the Nichia UV LEDs (process)
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs (process)
• Thermal Design Considerations for the SMD Type UV LEDs (design)

Optical distribution data

• NVSU119C(U405)_LightTools.zip
• NVSU119C(U405)_Zemax.zip

Characteristics / Technical specifications

• Package size: 3.5×3.5×2 mm
• Color / Wavelength: UVA (405 nm)
• Product Version: NVSU119C (405 nm)
• Production Status: In production (Older model)
• Start of Sales: 2021/10
• Packaging Quantity: 3500 per reel
