Ultraviolet LED NVSU233C-D4 (395nm)
square

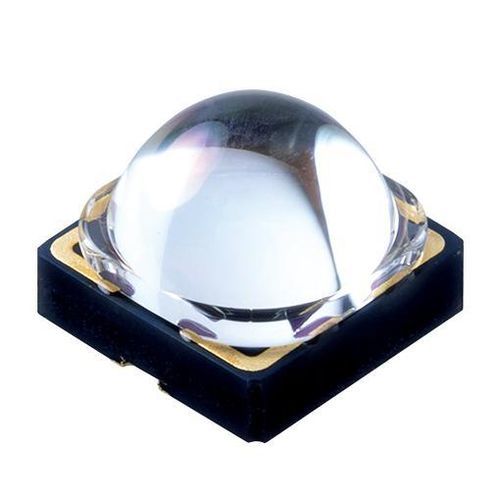

Ultraviolet LED - NVSU233C-D4 (395nm) - NICHIA - square
Ultraviolet LED - NVSU233C-D4 (395nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
ultraviolet
Configuration
square
Electrical power

5.88 W

Description

Overview
  • Package size: 3.5 × 3.5 × 2.73 mm
  • Color: UVA
  • Wavelength: 395 nm


Applications
  • Lithography
  • Curing


Product Version
  • Previous: -
  • Current: NVSU233C-D4 (395nm)
  • Next: -


Product Information
  • Production Status: In production (Recommended model)
  • Start of Sales: April 2022
  • Packaging Quantity: 800 per reel


Downloads (files listed by name)
  • Specifications: NVSU233C(T)-D4-E(6608B)U365x U385x U395x U405x.pdf
  • Ray Data: NVSU233C-D4(U395)_LightTools.zip; NVSU233C-D4(U395)_Zemax.zip
  • Application Notes:
    • Handling Precautions for the Nichia UV LEDs
    • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
    • Thermal Design Considerations for the SMD Type UV LEDs


Technical specifications
  • Model: NVSU233C-D4
  • Package size: 3.5 × 3.5 × 2.73 mm
  • Color / Wavelength band: UVA (395 nm)
  • Production Status: In production (Recommended model)
  • Start of Sales: April 2022
  • Packaging Quantity: 800 per reel
  • Typical applications: lithography, curing
  • Available technical/downloadable files: product specification PDF and ray data (LightTools, Zemax); application notes on handling and thermal design
