UV LED NCSU033C (365nm)
squarefor lighting

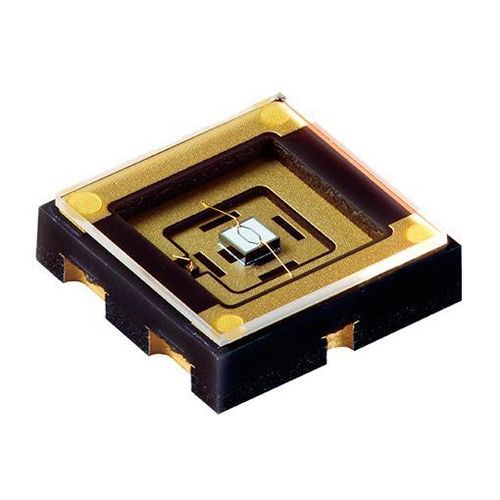

UV LED - NCSU033C (365nm) - NICHIA - square / for lighting
UV LED - NCSU033C (365nm) - NICHIA - square / for lighting
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Product applications
for lighting
Electrical power

3.08 W

Description

Overview
  • Type: SMD UV-A LED for industrial UV applications
  • Nominal wavelength: 365 nm (UVA)
  • Package size: 6.8×6.8×1.9 mm


Product Version
  • Previous: -
  • Current: NCSU033C (365nm)
  • Next: -


Product Information
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 500 per reel
  • Recommended lens manufacturer: ASAHI RUBBER INC.


Downloads - LED technical data (Specifications / Ray / SPICE / CAD)
  • Specifications: NCSU033C(T)-E(4863E).pdf
  • Ray Data: NCSU033C_LightTools.zip
  • Ray Data: NCSU033C_Zemax.zip


Application Notes
  • Handling Precautions for the Nichia UV LEDs (PDF)
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs (PDF)
  • Thermal Design of NCSU03xC (U365, U385, U405) LEDs (PDF)
  • Thermal Design Considerations for the SMD Type UV LEDs (PDF)


Technical specifications
  • Model: NCSU033C
  • Nominal wavelength: 365 nm (UVA)
  • Package size: 6.8 × 6.8 × 1.9 mm
  • Color / Type: UV-A
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging: 500 per reel
  • Related specification file: NCSU033C(T)-E(4863E).pdf

Catalogs

No catalogs are available for this product.

See all of NICHIA‘s catalogs
