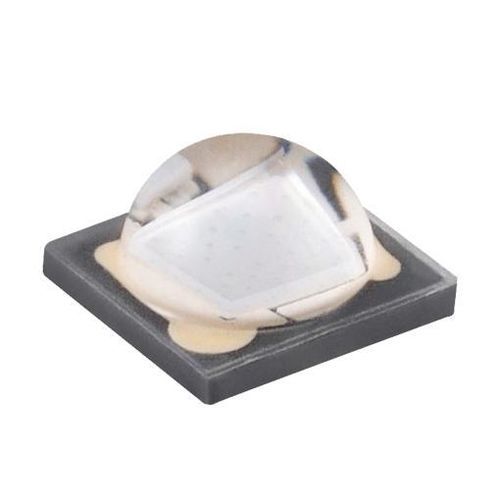

UV LED NVSU119C (385nm)square
Add to favorites
Compare this product
Characteristics
- Spectrum
- UV
- Configuration
- square
- Electrical power
5.32 W
Description
Product name
NVSU119C (385 nm)
Basic information
Product version
Product information
Downloads - Specifications / Documents
Downloads - Ray Data
Application Notes / Process
Application Notes / Design
Technical specifications
NVSU119C (385 nm)
Basic information
- Package size: 3.5 × 3.5 × 2 mm
- Emission: UV-A (UVA)
- Peak wavelength (nominal): 385 nm
- Mounting type: SMD
Product version
- Previous: -
- Current: NVSU119C (385 nm)
- Next: -
Product information
- Production status: In production (Older model)
- Start of sales: November 2021
- Packaging quantity: 3500 per reel
Downloads - Specifications / Documents
- Specification PDF: NVSU119CT-E(4011I)U375x U385x U395x U405x.pdf
Downloads - Ray Data
- NVSU119C(U385)_LightTools.zip
- NVSU119C(U385)_Zemax.zip
Application Notes / Process
- Handling Precautions for the Nichia UV LEDs (application note)
- The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs (application note)
Application Notes / Design
- Thermal Design of NVSU119C(U375, U385, U395, U405) LEDs (technical note)
- Thermal Design Considerations for the SMD Type UV LEDs (technical note)
Technical specifications
- Model: NVSU119C
- Wavelength (nominal): 385 nm
- Package size: 3.5 × 3.5 × 2 mm
- Color category: UV-A
- Production status: In production (Older model)
- Start of sales: November 2021
- Packaging quantity: 3500 per reel
- Available files: specification PDF, ray data (LightTools/Zemax), application and design notes
