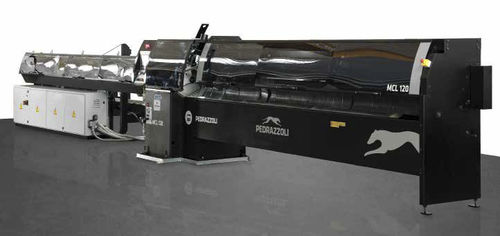

Rotary blade cutting line MCL 120 IMSfor metaltubeCNC
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- tube
- Control type
- CNC
- Associated function
- deburring
- Applications
- for industrial applications, for the automotive industry, for aeronautical applications, for the aerospace industry, for the food industry
- Workpiece loading
- manual loading, automated loading/unloading
- Phase
- three-phase
- Other characteristics
- high-precision, completely automated, with conveyor, steel bar cutting, high-speed, precision, with automatic feeder, multi-axis, high-performance, combined, for mass production, modular, programmable, CE
- Tube diameter
Max.: 122 mm
(5 in)Min.: 12 mm
(0 in)- Overall length
2,500 mm
(98 in)- Maximum width
1,285 mm
(51 in)- Height
1,800 mm
(71 in)- Weight
4,210 kg
(9,281.46 lb)
Description
> 7 controlled axes: constant repeatability and precision over time
> Fully automatic production changeover: set-up times reduced to zero
> Up to 3 different cutting lengths and 3 different unloading positions
> High productivity
> The wide range of configurations and accessories available makes it customisable to all requirements and needs
> Helical gear cutting head and double clamping cylinder: it ensures long-lasting blades, as well as precision and perpendicularity
> Electrical motor-driven blade feed and rotation ensure great cutting in all its stages (entry, intermediate, exit): excellent results in terms of time, cutting quality, and blade life
> Motor-driven length stopper for automatic positioning
> The peculiar layout of rollers and jaws is designed to perfectly clamp tubes
VIDEO
