Steam rotary union 9000 R SERIES
2-passagefor high-temperature applicationsindustrial

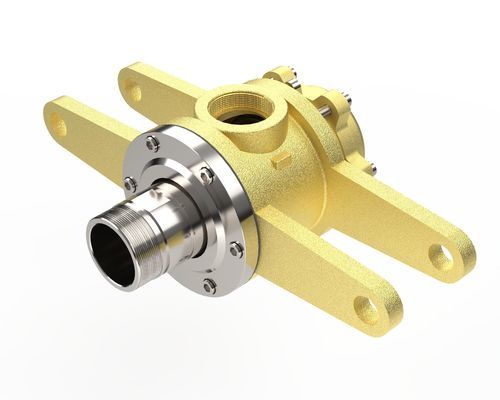

Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 2
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 3
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 4
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 5
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 6
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 7
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 8
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 9
Steam rotary union - 9000 R SERIES - ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. - 2-passage / for high-temperature applications / industrial - image - 10
Add to favorites
Compare this product
Go to the ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. website for more information

Characteristics

Medium
for steam
Number of passages
2-passage
Applications
industrial, for high-temperature applications
Material
stainless steel, cast iron, carbon
Other characteristics
with seal, screw-in, flange, dual-flow
Rotational speed

Min.: 100 rpm
(628.32 rad.min-1)

Max.: 200 rpm
(1,256.64 rad.min-1)

Pressure

Min.: 0 bar
(0 psi)

Max.: 17 bar
(247 psi)

Nominal size

Min.: 20 mm
(0.787 in)

Max.: 125 mm
(4.921 in)

Description

Overview
Rotary joint for steam designed to transfer steam to rotating equipment in industrial applications. Suitable for a range of rotor sizes and multiple connection types.


Key specifications
  • Media Type: Steam
  • Max. Speed: 100–200 RPM
  • Max. Pressure: 17 Bar
  • Max. Temperature: 180 C
  • Rotor Size: 3/4 (DN20) - 5 (DN125)
  • Connection Type: BSPT, NPT, SSR, QR, Flange


    • Features
  • RSP System
  • Duoflow design
  • Nodular casting housing
  • Stainless steel shaft and inner components
  • Carbon Graphite sealing parts
  • Stationary or rotating siphon system
  • Thread, Qr & flanged connection


    • Documentation
  • 9000 R Catalog Page (PDF)


    • Technical specifications
  • Media Type: Steam
  • Max. Speed: 100–200 RPM
  • Max. Pressure: 17 Bar
  • Max. Temperature: 180 C
  • Rotor Size: 3/4 (DN20) - 5 (DN125)
  • Connection Type: BSPT, NPT, SSR, Flange
  • Materials / Design: Nodular casting housing; stainless steel shaft and inner components; carbon graphite sealing parts
  • Available systems: RSP System; Duoflow design; stationary or rotating siphon system
