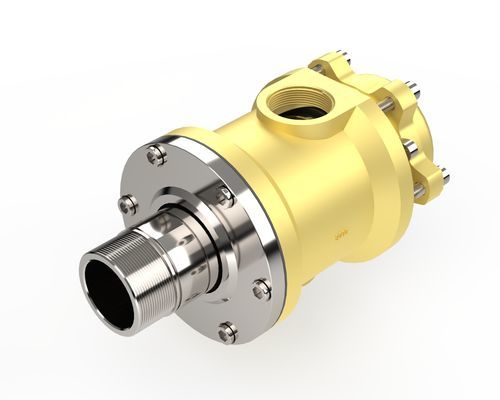

Steam rotary union 9000 T

for high-temperature applicationsindustrialcast iron

Product overview
9000 T Series rotary joint for steam, designed for reliable steam transfer in rotating equipment. Available with rotor sizes from 3/4 (DN20) to 5 (DN125) and multiple connection options. A 3D GLB model is provided for interactive inspection.




Key data

Media type: Steam

Max. speed: 200 - 100 RPM

Max. pressure: 17 bar

Max. temperature: 180 C

Rotor size range: 3/4 (DN20) – 5 (DN125)

Connection types: NPT, BSPT, QR, SSR, Flange

Features

RSP system

Single-flow design

Nodular cast housing

Stainless steel shaft and internal components

Carbon graphite sealing parts

Stationary or rotating siphon option

Threaded, QR & flanged connections

Additional information

The product page includes a 3D GLB model for interactive viewing and detailed inspection.

Technical specifications

Application medium: Steam

Maximum rotational speed: 200 - 100 RPM

Maximum operating pressure: 17 bar

Maximum operating temperature: 180 C

Available rotor sizes: 3/4 (DN20) to 5 (DN125)

Available connections: BSPT, NPT, SSR, Flange (threaded / QR & flanged)

Design features: RSP system, single-flow design, nodular cast housing

Materials: stainless steel shaft and internal components; carbon graphite sealing parts

Siphon options: stationary or rotating siphon system
