- Hot oil rotary union
- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

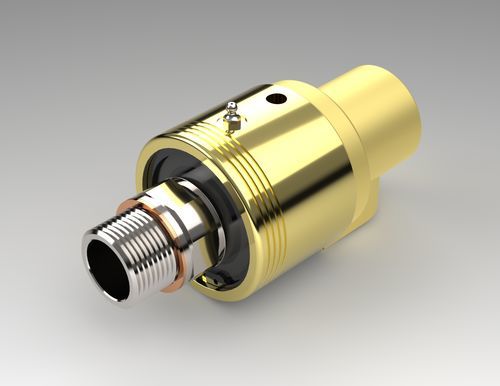

Hot oil rotary union 3000 HO T2brassstainless steelflange
Add to favorites
Compare this product
Characteristics
- Medium
- for hot oil
- Material
- brass, stainless steel
- Other characteristics
- flange, dual-flow, single flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(102 psi)- Nominal size
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)
Description
Rotary Joints for Hot Oil
Media Type: Hot Oil
Maximum Speed: 750 RPM / 3500 RPM
Maximum Pressure: 6.5 bar
Maximum Temperature: 160 C
Rotor Size: 1/4" DN08 – 4" DN100
Connection Type: NPT, BSP, BSPP, FL, SSR
Features:
Media Type: Hot Oil
Maximum Speed: 750 RPM / 3500 RPM
Maximum Pressure: 6.5 bar
Maximum Temperature: 160 C
Rotor Size: 1/4" DN08 – 4" DN100
Connection Type: NPT, BSP, BSPP, FL, SSR
Features:
- Single and dual flow design
- Balanced mechanical seal
- Forged brass housing
- Silicon carbide sealing components
- Stainless steel shaft and internal parts
- Hybrid, QR, and flanged connections
