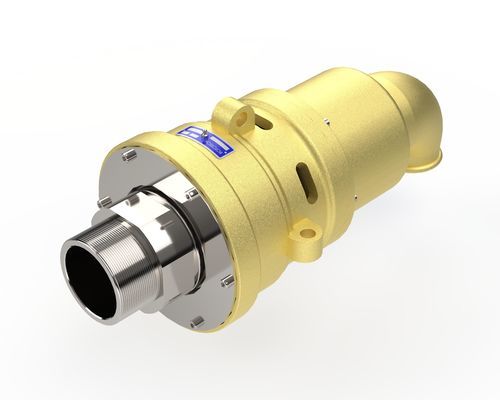

Water rotary union 8000 S SERIESmulti-passagecast ironstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- multi-passage
- Material
- stainless steel, cast iron
- Other characteristics
- dual-flow, single flow
- Rotational speed
Max.: 750 rpm
(4,712.39 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 15 bar
(218 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 100 mm
(3.937 in)Min.: 65 mm
(2.559 in)
Description
Rotary Joint for water & general purpose Media Type Water General Purpuse Max.
Speed 750 RPM Max.
Pressure 15 Bar Max.
Temperature 120 C
Rotor Size 2 1/2" DN65 - 4" DN100
Connection Type BSPT, NPT, SSR, OR, FL
Single and duoflow design Balanced mechanical sealing Nodular casting housing Silicon carbide sealing components Stainless steel shaft and inner parts Threaed, Qr & flanged connection
Speed 750 RPM Max.
Pressure 15 Bar Max.
Temperature 120 C
Rotor Size 2 1/2" DN65 - 4" DN100
Connection Type BSPT, NPT, SSR, OR, FL
Single and duoflow design Balanced mechanical sealing Nodular casting housing Silicon carbide sealing components Stainless steel shaft and inner parts Threaed, Qr & flanged connection
