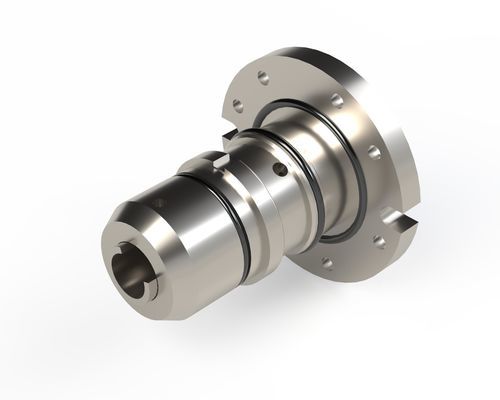

Water rotary union 1000 D - T1for continuous casting applicationsindustrialfor the steel industry
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Applications
- industrial, for the steel industry, for continuous casting applications
- Material
- stainless steel
- Other characteristics
- with seal, flange, shaft-mounted, single flow
- Rotational speed
Max.: 100 rpm
(628.32 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 20 mm
(0.787 in)Min.: 15 mm
(0.591 in)
Description
General
Rotary sealing heads designed for SDM and slab segment lines, suitable for water and general liquid sealing. Interactive 3D view available for detailed inspection.
Fluid / Application
Water general industrial fluids
Features
Model Variations
Characteristics / Technical Specifications
Rotary sealing heads designed for SDM and slab segment lines, suitable for water and general liquid sealing. Interactive 3D view available for detailed inspection.
Fluid / Application
Water general industrial fluids
Features
- Single-pass flow design
- Shaft: in-shaft mounted, flanged body
- Stainless-steel shaft and rotor
- Easy to install
Model Variations
- 1000 D1 - D2 Series model variations available
- About Variations
- Please consult available variant models: single or double flow, geared or flanged, and other multi-combination options.
Characteristics / Technical Specifications
- Fluid type: Water general use
- Max. speed: 100 RPM
- Max. pressure: 10 bar
- Max. temperature: 120 C
- Body: Stainless Steel
- Shaft / Rotor: Stainless steel
- Flow structure: Single-pass
