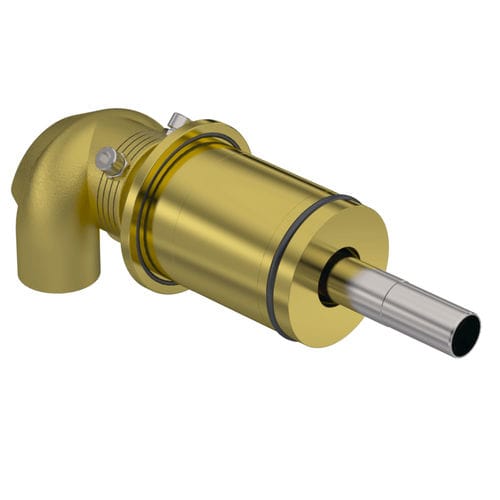

Water rotary union 1000 B - T2brassstainless steelbronze
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Material
- brass, stainless steel, bronze
- Other characteristics
- dual-flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 100 rpm
(628.32 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)- Nominal size
Min.: 15 mm
(0.591 in)Max.: 25 mm
(0.984 in)
Description
Product overview
Water rotary joint designed for CCM lines, providing a single flow path for cooling or general-purpose media.
Features
Variations
Technical specifications
Water rotary joint designed for CCM lines, providing a single flow path for cooling or general-purpose media.
Features
- Dual flow
- Flanged housing mounted with retaining plate
- Stainless steel shaft
- Bronze bearing and Teflon Viton O-ring seal kit
- Forging brass body
- Easy assembling
Variations
- 1000B-T1 (referenced as a variation of the 1000B series)
Technical specifications
- Media Type: Water General Purpose
- Max. Speed: 100 RPM
- Max. Pressure: 10 Bar
- Max. Temperature: 120 C
- Rotor Size: 1/2 DN15 - 1 DN25
- Connection Type: BSP, BSPP, NPT
