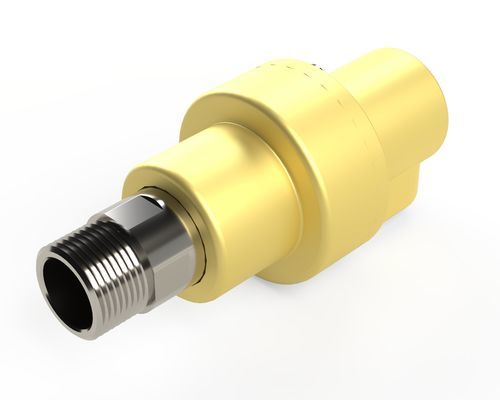

Water rotary joint 400 T2

multi-passageindustrialfor rollers

Overview
400 Series mechanical seals feature silicon carbide (SiC) sealing faces with a bronze bearing, engineered for single-flow operation in water and general-purpose applications. They are intended for use with stainless steel shafts/rotors and mounted in nodular cast bodies. Rotor sizes cover DN20 and DN25.


Key Features

• Dual Flow
• Stainless Steel Shaft/Rotor
• Nodular casting body
• Radial housing connection
• Silicon Carbide / Silicon Carbide sealing faces with bronze bearing

• Technical specifications
• Media Type: Water General Purpose
• Max. Speed: 100 RPM
• Max. Pressure: 10 Bar
• Max. Temperature: 100 C
• Rotor Size: 1" (DN25); 3/4" (DN20)
• Connection Type: Flange, BSPT, NPT, Metric, BSPP
• Sealing elements: Special SiC (Silicon Carbide) sealing elements with bronze bearing
• Flow configuration: Single Flow
• Shaft/Rotor material: Stainless Steel
• Body material: Nodular casting
