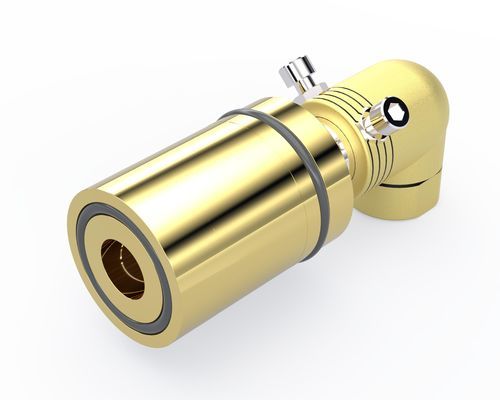

Water rotary union 1000 A - T1

for continuous casting applicationsbrassbronze

Product Overview
Rotary joint for water in CCM lines, designed for in-shaft installation and single-flow operation.


Features

Single flow

In-the-shaft mounted

Stainless steel shaft

Bronze bearing and Teflon Viton O-ring seal kit

Forged brass body

Easy assembling

Variations
1000A-T1 Series model variations exist (example: 1000A-T2). Variants include single or dual flow, threaded or flanged connections, and multiple combinations.


Technical specifications

Model: 1000A-T1 Series

Intended use: For CCM lines (water rotary joints)

Media Type: Water, general purpose

Maximum Speed: 100 RPM

Maximum Pressure: 10 Bar

Maximum Temperature: 120C

Rotor Size: 1/2 (DN15) - 1 (DN25)

Connection Types: BSP, BSPP, NPT

Flow: Single flow

Mounting: In-the-shaft mounted

Shaft Material: Stainless steel

Bearing / Seal: Bronze bearing; Teflon Viton O-ring seal kit

Body Material: Forged brass

Assembly: Easy assembling
