- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

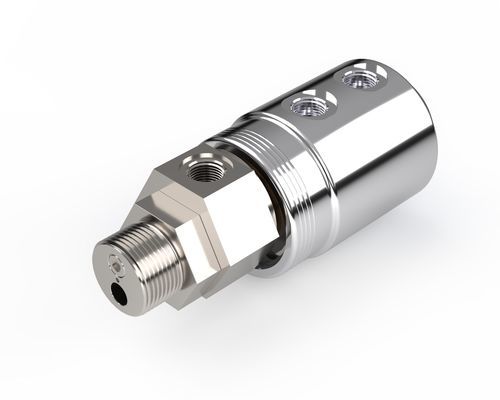

Oil rotary union 7000 TE multi-passagealuminiumsteel
Add to favorites
Compare this product
Characteristics
- Medium
- for oil
- Number of passages
- multi-passage
- Material
- aluminium, steel
- Other characteristics
- dual-flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 250 rpm
(1,570.8 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 200 bar
(2,901 psi)- Nominal size
20 mm, 25 mm, 32 mm, 40 mm
(0.787 in, 0.984 in, 1.26 in, 1.575 in)
Description
Rotary Joint for hydraulic oil Media Type Hydraulic Oil Max.
Speed 250 RPM Max.
Pressure 200 Bar Max.
Temperature 120 C
Rotor Size 2 x 1/4" - 2 x 3/8" - 2 x 1/2" - 2 x 3/4"
Connection Type BSPP, BSPT, NPT
Double flow design Balanced mechanical sealing Aluminium housing Teflon & viton sealing parts Special plated shaft Threaded connection (BSP, BSPP, NPT)
Speed 250 RPM Max.
Pressure 200 Bar Max.
Temperature 120 C
Rotor Size 2 x 1/4" - 2 x 3/8" - 2 x 1/2" - 2 x 3/4"
Connection Type BSPP, BSPT, NPT
Double flow design Balanced mechanical sealing Aluminium housing Teflon & viton sealing parts Special plated shaft Threaded connection (BSP, BSPP, NPT)
