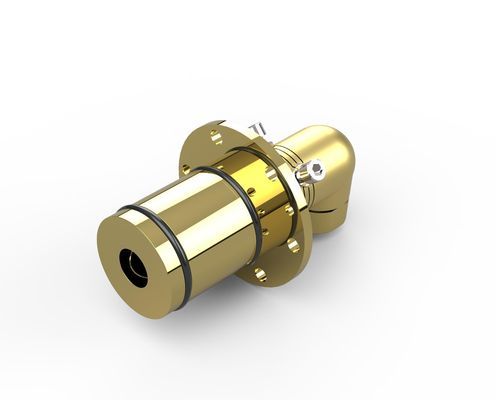

Water rotary union 1000C - T1 series

stainless steelbrassflange

Product
The 1000C-T1 Series is a water rotary union designed for CCM coating/curtain lines. It provides a single-flow, flanged connection with corrosion-resistant materials suitable for water and general-purpose fluids.

Key Features

• Single flow configuration
• Flanged housing for straightforward mounting
• Stainless steel shaft
• Bronze bearing with Teflon + Viton O‑ring seal kit
• Forged brass body
• Designed for easy assembly

Variations
Multiple variants available including single- or dual-flow versions, thread or flanged connections, and custom combinations to match installation and process requirements.

Technical Summary

• Media type: Water and general-purpose fluids
• Max. speed: 100 RPM
• Max. pressure: 10 Bar
• Max. temperature: 120 °C
• Connection types: BSP, BSPP, NPT

Technical specifications

• Series: 1000C-T1 Series
• Application: Rotary union for CCM lines (water)
• Flow configuration: Single flow (dual-flow variants available)
• Housing: Flanged housing (threaded variants available)
• Shaft material: Stainless steel
• Bearings & seals: Bronze bearing; Teflon + Viton O‑ring seal kit
• Body material: Forged brass
• Assembly: Engineered for easy assembling
• Media compatibility: Water and general-purpose fluids
• Maximum speed: 100 RPM
• Maximum pressure: 10 Bar
• Maximum temperature: 120 °C
• Supported connections: BSP, BSPP, NPT
