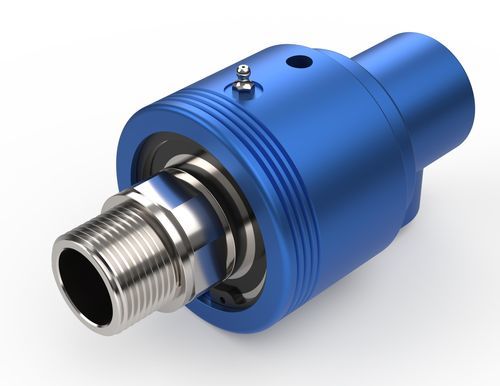

Water rotary union 3000 A T2aluminiumstainless steelwith seal
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Material
- aluminium, stainless steel
- Other characteristics
- with seal, flange, dual-flow, single flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 20 bar
(290 psi)- Nominal size
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)
Description
Rotary Joint for water & general purpose Media Type Water General Purpuse Max.
Speed 750 RPM - 3500 RPM
Max. Pressure 20 Bar
Max. Temperature 90 C Rotor
Size 1/4" DN08 - 2" DN50 Connection Type BSPT, SSR, BSPP, FL
Single and duoflow design Balanced mechanical sealing Silicon carbide sealing components Aluminium body and stainless steel shaft/rotor Threaed, Qr & flanged connection
Speed 750 RPM - 3500 RPM
Max. Pressure 20 Bar
Max. Temperature 90 C Rotor
Size 1/4" DN08 - 2" DN50 Connection Type BSPT, SSR, BSPP, FL
Single and duoflow design Balanced mechanical sealing Silicon carbide sealing components Aluminium body and stainless steel shaft/rotor Threaed, Qr & flanged connection
