- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

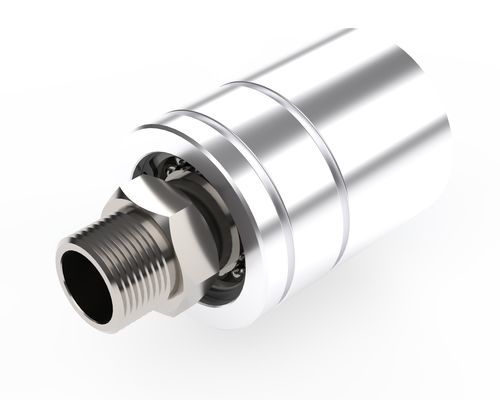

Vacuum rotary union 2000 seriesfor aircarbon steelstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for air, for vacuum
- Material
- stainless steel, carbon steel
- Other characteristics
- radial, single flow
- Rotational speed
Max.: 1,500 rpm
(9,424.78 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 40 mm
(1.575 in)Min.: 6 mm
(0.236 in)
Description
2000 Series
For Air & Vacuum rotary joints
Media Type
Air - Vacuum
Max. Speed
1500 RPM
Max. Pressure
10 Bar
Max. Temperature
80 °C
Rotor Size
1/8" DN06 1 1/2" DN40
Connection Type
BSPT
Monoflow
Self supported sealing
Radial or axial connection
Low torque
Aliminium housing
Carbon steel or stainless steel shaft
Catalogs
2000 Series
2 Pages
