- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

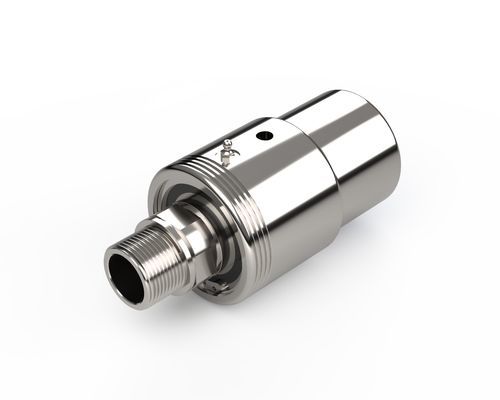

Water rotary union 3000 P T1stainless steeldual-flowsingle flow
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Material
- stainless steel
- Other characteristics
- dual-flow, single flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 50 bar
(725 psi)- Nominal size
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)
Description
Rotary Joint for water & general purpose Media Type Water General Purpuse Max.
Speed 3500 RPM 750 RPM
Max. Pressure 50 Bar Max.
Temperature 120 C
Rotor Size 1/4" DN08 - 2" DN50
Connection Type NPT, BSP BSPP, BSPT, FL, METRIC, UNF, SSR
Single and duoflow design Balanced mechanical sealing Silicon carbide sealing components Stainless Steel Shaft/Rotor Threaed, Qr & flanged connection
Speed 3500 RPM 750 RPM
Max. Pressure 50 Bar Max.
Temperature 120 C
Rotor Size 1/4" DN08 - 2" DN50
Connection Type NPT, BSP BSPP, BSPT, FL, METRIC, UNF, SSR
Single and duoflow design Balanced mechanical sealing Silicon carbide sealing components Stainless Steel Shaft/Rotor Threaed, Qr & flanged connection
