- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

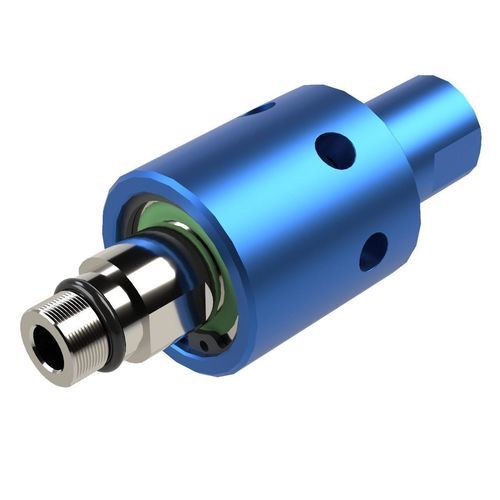

Refrigerant fluid rotary union 100 seriesfor machine toolsaluminiumstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for refrigerant fluids
- Applications
- for machine tools
- Material
- aluminium, stainless steel
- Other characteristics
- screw-in, radial, ball bearing, custom, self-sealing, high-speed, shaft-mounted, single flow, light, quick-connect
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 15,000 rpm
(94,247.78 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 105 bar
(1,523 psi)- Nominal size
0 mm
(0 in)
Description
Overview
Rotary joints designed for CNC machines and vertical machining centers to transfer boron oil coolant between stationary and rotating components. Suitable for continuous full-flow coolant circulation in machining spindles and tooling systems.
Features
• Boron oil coolant rotary joint for metalworking applications
• Full capacity fluid transfer with minimal pressure loss
• Silicon Carbide sealing components for extended service life
• Aluminum anti-corrosion body
• Various thread options: 1/4" - 3/8"
• Drainage holes to prevent fluid accumulation
• Easy assembly and maintenance
Technical specifications
• Media type: Coolant (boron oil)
• Max. speed: 15,000 RPM
• Max. pressure: 105 Bar
• Max. temperature: 70 °C
• Rotor size: 5/8-18 UNF LH
• Rotor size: Metric 16x1,5 RH
• Connection type: UNF - Metric
Rotary joints designed for CNC machines and vertical machining centers to transfer boron oil coolant between stationary and rotating components. Suitable for continuous full-flow coolant circulation in machining spindles and tooling systems.
Features
• Boron oil coolant rotary joint for metalworking applications
• Full capacity fluid transfer with minimal pressure loss
• Silicon Carbide sealing components for extended service life
• Aluminum anti-corrosion body
• Various thread options: 1/4" - 3/8"
• Drainage holes to prevent fluid accumulation
• Easy assembly and maintenance
Technical specifications
• Media type: Coolant (boron oil)
• Max. speed: 15,000 RPM
• Max. pressure: 105 Bar
• Max. temperature: 70 °C
• Rotor size: 5/8-18 UNF LH
• Rotor size: Metric 16x1,5 RH
• Connection type: UNF - Metric
