- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

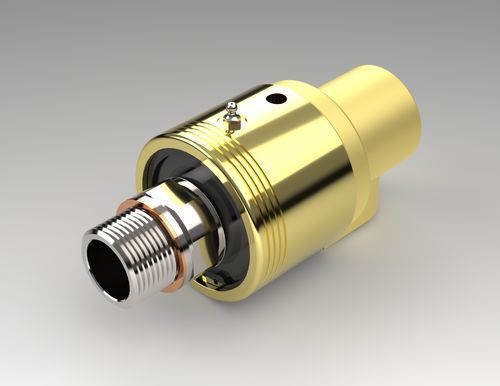

Water rotary union 3000 T12-passagefor continuous casting applicationsfor rubber and plastic applications
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- 2-passage
- Applications
- for transfer, industrial, for machine tools, for the steel industry, for the chemical industry, for pipes, for the plastics industry, maritime industry, for clean-in-place systems, for automation, for rubber and plastic applications, for rollers, for continuous casting applications
- Material
- brass, stainless steel
- Other characteristics
- screw-in, flange, ball bearing, dual-flow, shaft-mounted, single flow, all-fluid
- Rotational speed
Min.: 0.1 rpm
(0.63 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Pressure
Min.: 1 bar
(15 psi)Max.: 50 bar
(725 psi)
Description
Rotary Joint for Water and General-Purpose Applications
Media Type: Water, General Purpose
Maximum Speed: 750 RPM – 3500 RPM (max.)
Pressure: Maximum 50 bar
Temperature: 120 C
Rotor Size: 1/4" DN08 – 4" DN100
Connection Type: NPT, BSP, BSPP, FL, SSR
Features:
Media Type: Water, General Purpose
Maximum Speed: 750 RPM – 3500 RPM (max.)
Pressure: Maximum 50 bar
Temperature: 120 C
Rotor Size: 1/4" DN08 – 4" DN100
Connection Type: NPT, BSP, BSPP, FL, SSR
Features:
- Single and dual-flow design
- Balanced mechanical seal
- Forged brass housing
- Silicon carbide sealing components
- Stainless steel shaft and internal parts
- Threaded, QR, and flanged connections
VIDEO
