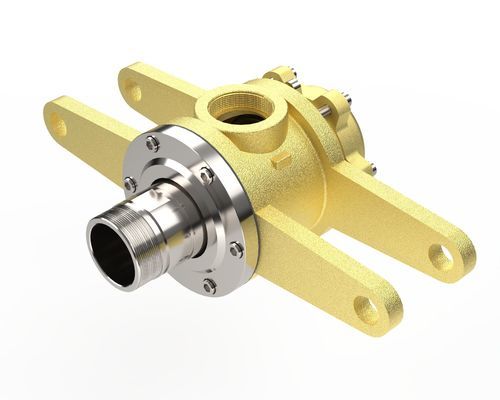

Hot oil rotary union 9000R HO2-passagehigh-temperaturecast iron
Add to favorites
Compare this product
Characteristics
- Medium
- for hot oil
- Number of passages
- 2-passage
- Applications
- high-temperature
- Material
- stainless steel, cast iron, carbon
- Other characteristics
- with seal, flange, dual-flow, thermal fluid
- Rotational speed
Min.: 100 rpm
(628.32 rad.min-1)Max.: 200 rpm
(1,256.64 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116 psi)- Nominal size
Min.: 20 mm
(0.787 in)Max.: 125 mm
(4.921 in)
Description
Product
Rotary joint for hot oil — 9000R HO Series.
Key specifications
Media type: Hot oil Max. speed: 100–200 RPM Max. pressure: 8 Bar Max. temperature: 260 C Rotor sizes: 3/4 (DN20) – 5 (DN125) Connection types: BSPT, NPT, SSR, flanged (threaded / QR / flanged)
Features RSP system Duoflow design Nodular cast housing Stainless steel shaft and internal components Carbon graphite sealing elements Stationary or rotating siphon option Threaded, QR & flanged connections
3D model / media 3D model (GLB) available: https://api.rototech.com.tr/uploads/a0d8ebb140824e149402d486fdaea4d5.glb
Characteristics / Technical specifications Product type: Rotary joint designed for hot oil service Maximum temperature rating: 260C Maximum pressure rating: 8 Bar Maximum speed range: 100–200 RPM Rotor sizes available: 3/4 (DN20) up to 5 (DN125) Connection options: BSPT, NPT, SSR, flanged (threaded / QR / flanged) Housing material: nodular cast iron Shaft and internal components: stainless steel Sealing materials: carbon graphite Design options: RSP system, Duoflow design Siphon: stationary or rotating siphon system available
Rotary joint for hot oil — 9000R HO Series.
Key specifications
