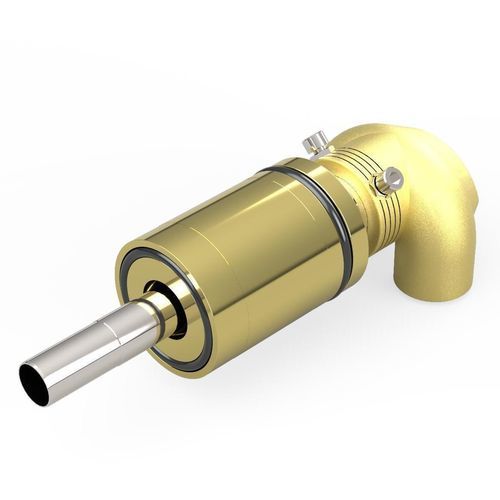

Water rotary union 1000A - T2brassstainless steelbronze
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Material
- brass, stainless steel, bronze
- Other characteristics
- dual-flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 100 rpm
(628.32 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)- Nominal size
Min.: 15 mm
(0.591 in)Max.: 25 mm
(0.984 in)
Description
Product Overview
Rotary joint for water in CCM lines, designed for in-shaft installation and single-flow operation.
Features
Variations
Rotary joint for water in CCM lines, designed for in-shaft installation and single-flow operation.
Features
- Dual flow
- In-the-shaft mounted
- Stainless steel shaft
- Bronze bearing and Teflon Viton O-ring seal kit
- Forged brass body
- Easy assembling
Variations
- 1000A-T2 Series model variations exist (example: 1000A-T1). Variants include single or dual flow, threaded or flanged connections, and multiple combinations.
- Technical specifications
- Model: 1000A-T2 Series
- Intended use: For CCM lines (water rotary joints)
- Media Type: Water, general purpose
- Maximum Speed: 100 RPM
- Maximum Pressure: 10 Bar
- Maximum Temperature: 120C
- Rotor Size: 1/2 (DN15) - 1 (DN25)
- Connection Types: BSP, BSPP, NPT
- Flow: Dual flow
- Mounting: In-the-shaft mounted
- Shaft Material: Stainless steel
- Bearing / Seal: Bronze bearing; Teflon Viton O-ring seal kit
- Body Material: Forged brass
- Assembly: Easy assembling
