Regulating control unit MC2010

for piloting3-axiswith display

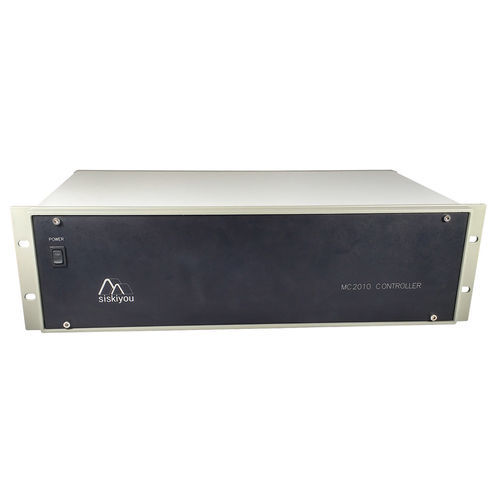

The MC2010 Multi Axis Motion Controller is a computer interface controller designed to position linear and rotary stages via LabVIEW-based software installed on a customer-supplied PC or laptop with a USB port. This controller is compatible with Siskiyou's closed loop motorized linear stages (800, 100cri, 200cri, 7600, and 7700 series stages), linear actuators (841 and 842), and motorized rotational stages (RSA-0.5i, RSA-1.0i, and RSA-2.0i).

Configuration and Software
The base model of the MC2010 is a 4-axis configuration, but it is available in configurations up to 10 axes, all housed in an industry-standard 19-inch rack-mounted cabinet. A USB cable is included for connectivity. The supplied LabVIEW executable allows precise movement of the stage or actuator, either by a set distance or by jogging for coarse positioning. Interface commands are given in microns or degrees, with a resolution of 0.1 µm or 0.1° when used with Siskiyou motorized stages. Users can create location presets for each axis, enabling easy recall of saved stage positions. The software also supports recording moves to a script file, which can be played back to repeat saved sub-routines. The software is provided on a CD.

Product Features

• Operating software included
• 4 through 10 axis, closed loop control
• USB I/O interface
• 19-inch rack mount form factor
• RoHS compliant

Technical Specifications

• Minimum controllable motion: 0.1 µm
• Maximum speed: 1.7 mm/sec
• Power requirements: 110–230 VAC, 50/60 Hz

System Requirements

• Windows 7.0 or higher

Hardware - Minimum Requirements

• 2GHz CPU speed
• 1GB RAM
• 1GB hard disk free space
• Available USB2.0 interface
• Display screen resolution of 1440x900

Characteristics / Technical Specifications

• Controller type: Multi-axis motion controller
• Compatible with Siskiyou closed loop motorized linear stages and actuators
• LabVIEW-based software for control and scripting
• Resolution: 0.1 µm or 0.1°
• Axes supported: 4 to 10
• Form factor: 19-inch rack mount
• USB interface
• RoHS compliant
• Power: 110–230 VAC, 50/60 Hz
• Minimum motion: 0.1 µm
• Maximum speed: 1.7 mm/sec
• System requirements: Windows 7.0 or higher, 2GHz CPU, 1GB RAM, 1GB HDD, USB2.0, 1440x900 display
