Rotary positioning stage RS

manualball bearing

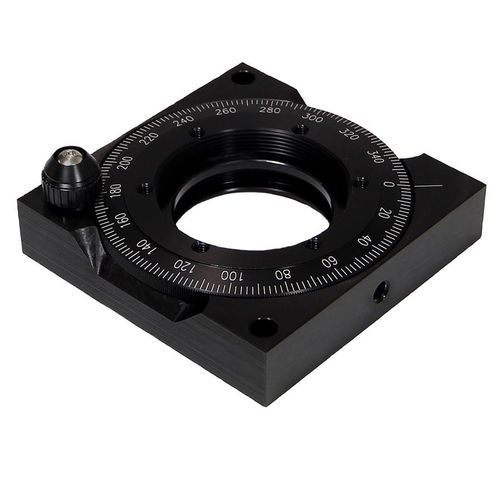

The RS Series Stage is a manual rotation stage designed to provide smooth, continuous angular positioning for a variety of components. Both available sizes utilize a unique integrated ball bearing design, offering a robust yet cost-effective alternative to more expensive bearing packages. The knurled drive system, combined with the bearing system, ensures smooth positioning throughout the full 360° of continuous rotation. The rotating platform features a knurled edge for convenient coarse positioning control, while a fine adjustment knob allows for precise angular positioning via a 360° scale graduated in 2° increments. The platform can be securely locked in place using a non-influencing lock integrated into the fine adjustment knob.

Product Features

• Coarse manual adjustment
• Fine adjustment through 360°
• Non-influencing lock
• Vacuum compatible versions available upon request

Performance Specifications

• Travel: 360° continuous

Available Options

• Size: Small, Large
• Unit of Measure (UOM): Metric, Imperial
• Optic Size: 1.0in, 2.0in, Platform

Characteristics / Technical Specifications

• Manual or Motorized: Manual
• Optic Size Options: 1.0in, 2.0in, Platform
• Size Options: Large, Small
• Unit of Measure: Imperial, Metric
• Volume: 0.000000
• Weight Unit of Measure: LB
