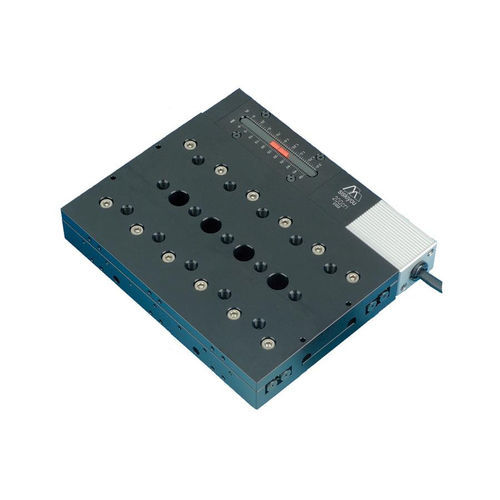

Linear positioning stage X00CRI

motorizedcrossed rollerclosed-loop

The 100cri, 100cri-A, 200cri and 200cri-A motorized crossed roller bearing translation stages offer exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages, reducing non-linear motion when changing directions. The 200cri and 200cri-A models integrate 200cr and 200cr-A translation stages with 841 actuators, creating a more compact package. These stages are driven by e series and MC2010 controllers through a closed loop interface between the controller and motor encoder, ensuring high resolution of 0.2 µm and 0.1 µm, respectively.

Product Features

• 1.7 mm/second rapid positioning
• Limit switch soft stops
• Visual quick reference scale
• Vacuum compatible versions available

Performance Specifications

• Maximum horizontal axis load: 30 lbs
• Maximum vertical axis load: 10 lbs
• Travel: 2.0 inch (50 mm)
• Backlash: < 5 µm
• Point-to-point accuracy: ± 2 µm

Technical Characteristics / Specifications

• Axes of Adjustment: X
• Hand: LEFT or RIGHT
• Manual/Motorized: MOTORIZED
• Open/Closed Loop: CLOSED LOOP
• Travel Options: 25MM/1.0IN or 50MM/2.0IN
• Unit of Measure: IMPERIAL or METRIC
• Volume: 0.000000
• Weight Unit: LB
