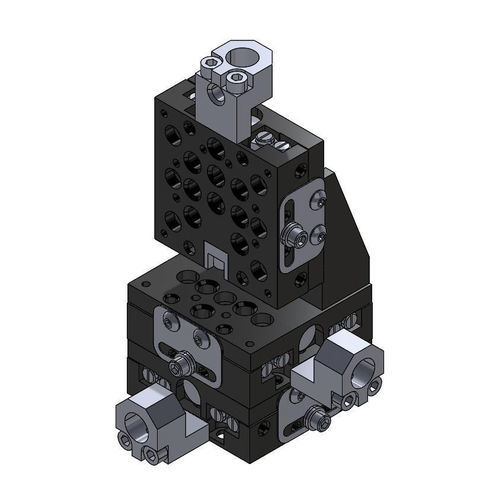

XY nanopositioning stage 50.5cr

XYZ2-axiscompact

The 50.5cr Series Stage is the thinnest line of crossed roller stages available on the market, designed for applications where space or height is critical. Its slim profile makes it ideal for compact setups, and it is available in X-, XY-, or XYZ-axis versions across three sizes. Each axis features a non-influencing foil lock, ensuring that the initial adjustment remains stable, with matching mounting holes on the opposite edge for flexible access. Depending on the sensitivity required, the stage can be equipped with either 8-80TPI or 8-100TPI adjustment screws, or SM-1 micrometers. Angle brackets are included in assemblies and can also be purchased separately.

Product Features

• Low profile design
• Non-influencing lock
• High load crossed roller bearings
• Vacuum compatible versions available

Performance Specifications

• Travel range: 0.5 inch (12mm)
• Maximum Horizontal axis load: 5 lb
• Maximum Vertical axis load: 2 lb
• Resolution:
  • 80TPI adjustment screw: 5 µm
  • 100TPI adjustment screw: submicron

Options

• Axes of Adjustment: X, X-Y, X-Y-Z
• Hand: RIGHT, LEFT
• UOM: METRIC, IMPERIAL

Characteristics / Technical Specifications

• Series: 50.5cr
• SKU: 50.5CR SERIES
• Available axis configurations: X, XY, XYZ
• Adjustment screw compatibility: 8-80TPI, 8-100TPI, SM-1 micrometers
• Angle brackets included in assemblies
