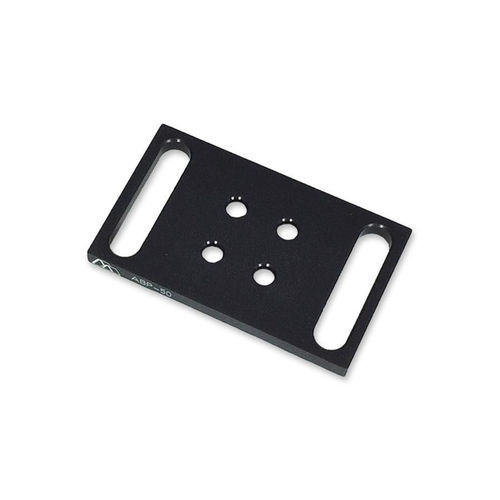

Mounting plate ABP

The ABP Series Mounting Plate is a low profile, solid aluminum base plate designed to provide secure mounting for 50.5cr, 100.5cr, 150.5cr series and 50.25dt, 100.25dt, 150.25dt stages. The machined slots in this base plate accommodate mounting with 1/4-20 or M6 screws on 1.0 inch or 25mm bolt hole patterns, respectively. Hardware is supplied for attachment to either English or Metric stages.

Product Features

• Low profile design
• Universal mounting
• Precision machined solid aluminum
• Vacuum compatible versions available upon request

Available Sizes

• Large
• Medium
• Small

Characteristics / Technical Specifications

• Compatible with: 50.5cr, 100.5cr, 150.5cr series and 50.25dt, 100.25dt, 150.25dt stages
• Mounting options: 1/4-20 or M6 screws
• Bolt hole patterns: 1.0 inch or 25mm
• Material: Solid aluminum
• Supplied hardware: For English or Metric stages
• Volume: 0.000000
• Weight unit of measure: LB
