Linear positioning stage X00CRI-A

motorizedvacuum-compatiblecrossed roller

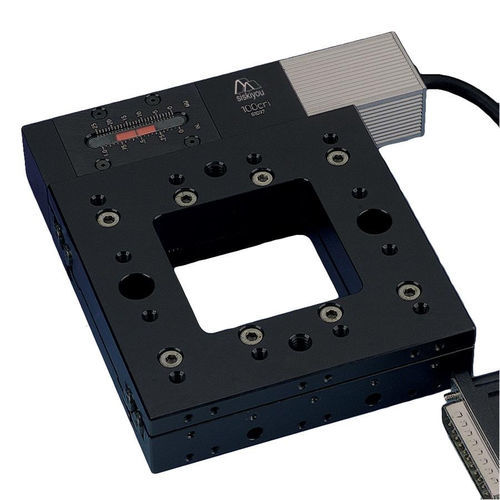

The 100cri and 100cri-A motorized crossed roller bearing translation stages offer exceptionally smooth linear travel. The time-tested design has been improved with the addition of more bearing area than similar stages. The increased bearing surface reduces non-linear motion when changing directions. 100cri and 100cri-A are the integration of 100cr and 100cr-A translation stages with 841 actuators. By combining actuator and stage, a smaller package is achieved. The e series and MC2010 controllers drive these stages through a closed loop interface between the controller and motor encoder, ensuring 0.2 µm and 0.1 µm resolution, respectively.

Product Features

• 1.7 mm/second rapid positioning
• Limit switch soft stops
• Visual quick reference scale
• Vacuum compatible versions available

Performance Specifications

• Maximum horizontal axis load: 30 lbs
• Maximum vertical axis load: 10 lbs
• Travel: 1.0 inch (25 mm)
• Backlash: < 5 µm
• Point-to-point accuracy: ± 2 µm

Characteristics / Technical Specifications

• Axes of Adjustment: X
• Hand: LEFT, RIGHT
• Manual/Motorized: MOTORIZED
• Open/Closed: CLOSED LOOP
• Travel: 25MM/1.0IN
• UOM: IMPERIAL, METRIC
• Volume: 0.000000
• Weight UOM: LB
