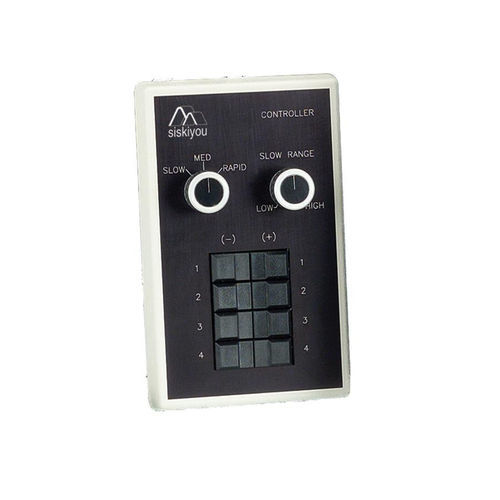

24-48 V DC servo controller MC400

The MC400 is an open loop DC servo controller designed to drive Siskiyou's 400 series actuators. It enables the user to operate from one to four actuators of any travel length within the 400 series. The controller utilizes a wall-mounted DC power supply and is engineered to be noise-free, making it suitable for use near sensitive electrophysiology experiments.

Product Features

• Economical DC controller
• Variable, high-resolution speed control
• Preset rapid and medium speed settings
• RoHS compliant
• CE compliant

Performance Specifications

• Compatible with 400 series actuators under 8 pounds load
• Power requirements: 110 VAC, 50/60 Hz

Maximum Speed

• Rapid: 800 µm/sec
• Medium: 100 µm/sec
• Slow Range / High: 35 µm/sec
• Slow Range / Low: 5 µm/sec

Characteristics / Technical Specifications

• Product type: 4 axis DC servo controller
• Operation: Open loop
• Manual/Motorized: Motorized
• SKU: 70170000E
• Weight unit of measure: LB
• Volume: 0.000000
• Power supply: Wall Transformer, 24VDC @ 400mA
• Power supply adapter options: US, UK, European, Australian adapters for WT002
