Multi-voltage DC servo controller MC1000e-R1/4T

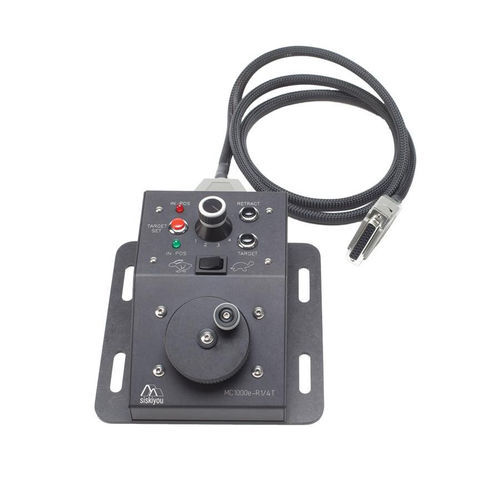

The MC1000e-R1/4T is a 4-axis DC servo controller designed for precise remote micrometer control, featuring a single dial and a user-selected target function. It is compatible with 800 and 7000 series actuators, manipulators, and stages, utilizing encoder feedback from closed-loop devices to ensure smooth, coordinated motion between the controller and the driven device. This direct encoder coupling allows for the use of the DR1000 digital readout for repeatable positioning tasks.

Product Details

• Acts as a remote micrometer control with a user-selected target feature for 800 and 7000 series actuators, manipulators, and stages.
• Uses encoder feedback from closed-loop devices to create an electronic link between the controller dial and the device being driven, ensuring smooth and coordinated motion.
• Enables use of the DR1000 digital readout for repeated positioning requirements.
• Four-position rotary switch on top of the controller allows selection of the desired axis to control.
• Two-position rocker switch on top of the controller enables rapid and slow travel speed selection. Rapid setting maximizes speed (1.5 mm/second at 240 RPM), while slow setting maximizes resolution (0.2 µm) and allows coarse positioning (45 µm/second).
• TARGET/RETRACT feature lets the user set a target location and easily retract or return to the set position with dedicated buttons. The stage/actuator automatically retracts to its full negative limit and can return to the previously set position.
• CE certified power supply provides clean DC power. All cables are shielded, and a central ground lug on the junction box ensures noise-free operation during sensitive electrophysiology experiments.

Product Features

• Multi-axis, single dial control
• Remote micrometer control
• High and low-speed settings
• RoHS compliant
• CE compliant

Performance Specifications

• Minimum controllable motion: 0.2 µm
• Maximum speed: 1.5 mm/sec
• Power requirements: 110-230 VAC, 50/60 Hz

Characteristics / Technical Specifications

• Product type: 4 axis DC servo controller
• Control: Dial, single axis target function
• Manual/Motorized: Motorized
• Open/Closed Loop: Closed loop
• Compatible with: 800 and 7000 series actuators, manipulators, and stages
• Encoder feedback: Yes, for closed-loop devices
• Target/Retract function: Yes
• Power supply: CE certified, 18VDC AC Adapter included
• Shielded cables and central ground lug for noise-free operation
