Linear stage 150.25dt-A

manualdovetail

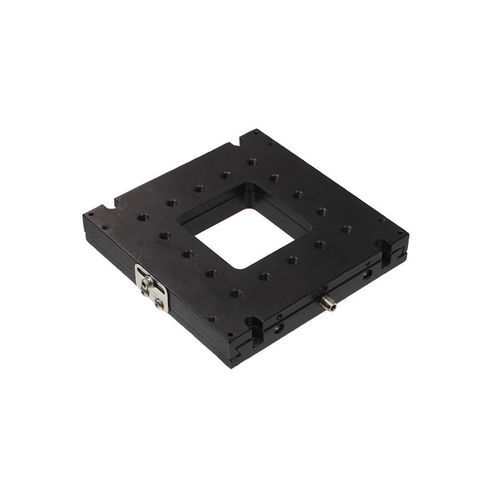

The newest version of the 150.25dt Dovetail Linear Stage is now available with an aperture. These stages are the thinnest line of dovetail stages on the market, designed for simplicity and effectiveness in set-it-and-forget-it applications. The aperture version, 150.25dt-A stage, is ideal for LASER and Microscopy applications where a light path through the stage is necessary.

Product Features

• Low profile design
• 100TPI adjustment
• Non-influencing lock
• UV and vacuum compatible versions available upon request

Performance Specifications

• Maximum horizontal axis load: 5 lbs
• Maximum vertical axis load: 2 lbs
• Travel: 0.25 inch (6 mm)
• Minimum controllable motion: 0.7 µm (based on 1° of adjustment screw rotation)

Technical Specifications / Characteristics

• Product type: Dovetail linear stage with aperture
• Application: LASER and Microscopy, light path through stage
• Adjustment: 100TPI
• Lock: Non-influencing
• Compatibility: UV and vacuum versions available
• Travel: 0.25 inch (6 mm)
• Minimum controllable motion: 0.7 µm
• Maximum horizontal load: 5 lbs
• Maximum vertical load: 2 lbs
• Profile: Low profile
