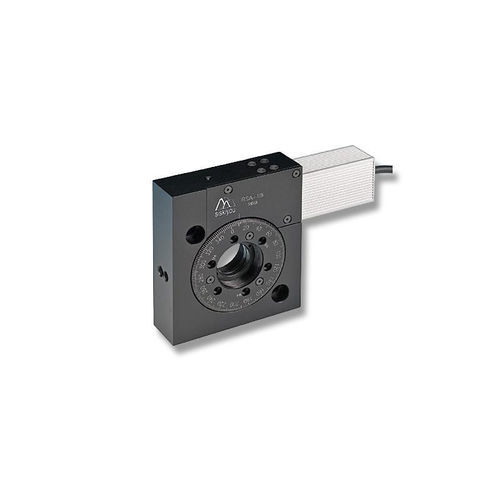

Rotary positioning stage RSA-i

motorizedcompact

The RSA-i Rotation Stage is a compact, high-performance motorized rotation stage designed for laboratory and OEM system applications. Its minimized base thickness of 1.0 inch (25 mm) is achieved by employing a standard DC servo motor. The stage features both 1/4-20 and M6 tapped holes on two edges for post or AS spacer mounting with the axis of rotation horizontal, as well as universal slots (U.S. system and metric spread) for direct attachment to an isolation table or platform with the axis of rotation vertical.

Product Features

• Quiet running DC servo motor
• Positive worm gear drive
• Flexible mounting features
• UV and Vacuum compatible versions available upon request

Characteristics / Technical Specifications

• Manual/Motorized: Motorized
• Control Loop: Closed loop
• Optic Size Options: 0.50 in, 1.0 in, 2.0 in
• Volume: 0.000000
• Weight Unit of Measure: LB
• Mounting: 1/4-20 and M6 tapped holes, universal slots for U.S. and metric systems
• Base Thickness: 1.0 inch (25 mm)
