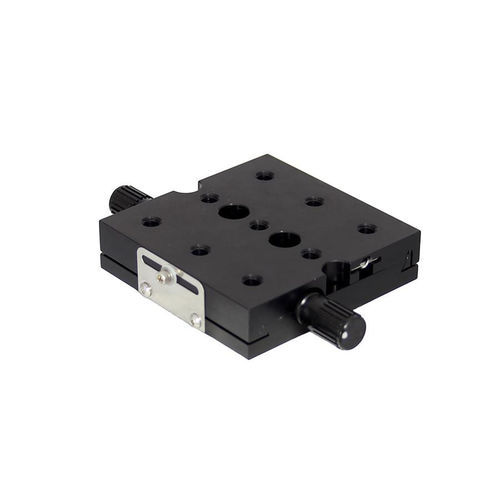

Linear positioning stage DT-300manualreversed-pitchmicro-pitch
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- manual
- Other characteristics
- reversed-pitch, micro-pitch, aluminum, vacuum-compatible, track, backlash-free, low-profile, dovetail
- Stroke
25 mm
(0.984 in)
Description
The DT-300 dovetail translation stage offers rapid 1.0 inch (25 mm) linear positioning for a variety of components. Adjustment of the 20 pitch lead screw can be made from either side of the DT-300. The drive mechanism is spring-loaded to minimize backlash. Smooth travel is obtained with a rugged dovetail slide track.
Product Features
Performance Specifications
Characteristics / Technical Specifications
Product Features
- Rapid positioning
- Stable dovetail design
- Lockable
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 20 lbs
- Maximum vertical axis load: 5 lbs
- Travel: 1.0 inch (25 mm)
- Minimum controllable motion: 10 µm (based on 1° of adjustment screw rotation)
Characteristics / Technical Specifications
- Model: DT-300 Series
- SKU: 90140000
- Travel: 1.0 inch (25 mm)
- Maximum horizontal axis load: 20 lbs
- Maximum vertical axis load: 5 lbs
- Minimum controllable motion: 10 µm
- Lead screw: 20 pitch, adjustable from either side
- Spring-loaded drive mechanism to minimize backlash
- Rugged dovetail slide track
- Lockable
- Vacuum compatible versions available
