Manual rotary table RS-100

verticalhorizontalhigh-precision

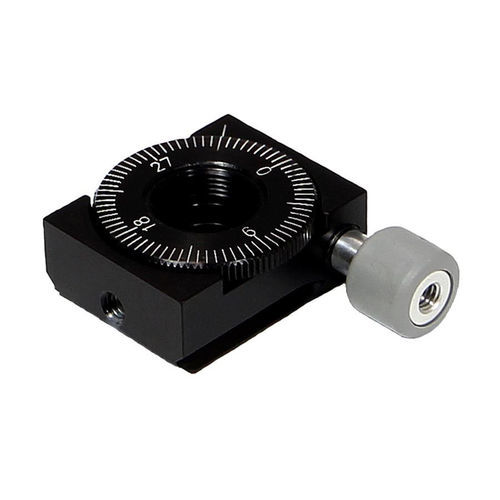

The RS-100 Series Stage is a compact rotation stage designed for close coupled optic stacking, ideal for 0.5-inch polarizers, wave plates, and other small optics. It features a right angle drive and allows coarse positioning through a full 360° using an external knurled dial. Fine adjustments are made with a conveniently located worm-driven adjustment knob. The stage utilizes a unique integrated ball bearing design, providing a robust and cost-effective alternative to more expensive bearing packages. The worm drive system, combined with the bearing system, ensures smooth and precise positioning throughout the entire 360° of rotation. The dial face is marked in 5° increments for easy reference.

Product Features

• Coarse manual adjustment
• Fine adjustment through 360°
• Post or table mounting
• Vacuum compatible versions available upon request

Performance Specifications

• Travel: 360° continuous
• Minimum controllable motion: 30 arc min. (based on 1° of adjustment screw rotation)

Maximum Load

• When axis of rotation is vertical: 1 lb
• When axis of rotation is horizontal: 0.5 lb

Characteristics / Technical Specifications

• Manual operation
• Optic size: 0.50 inch
• Unit of measure: Imperial and Metric options
• Weight unit: LB
• Volume: 0.000000
• SKU: 64010000
