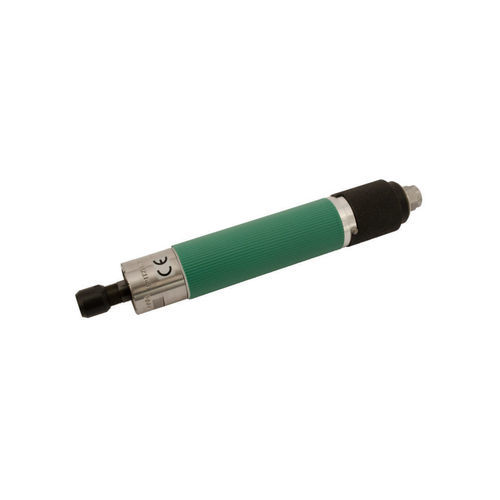

Pneumatic portable grinder 1 5060 0010

diecompactfront exhaust

Short description
Compact, lightweight pneumatic die grinder with a 6 mm collet, designed for common grinding consumables used in metalworking and plant construction.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Tool holder: Collet dia. 6 mm
• Exhaust: Front

Technical Data
ORDER NO.: 1 5060 0010
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder: Collet dia. 6 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: front
Length: 276.00 mm
Connection: R1/4" female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.9 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.3 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories

• Tools: Grinding pins, truncated cones, end mills and other tools are available on request.

Miscellaneous Accessories (order no. | description | connection)
9 3610 0180 | Hose 2.5 m with lubricator | R 1/4" male
9 3610 0200 | Hose 2.5 m without lubricator | R 1/4" male
9 2113 0260 | Plug connection | R 1/4" male
9 2115 0090 | Plug nipple | R 1/4" male
9 2406 0260 | Portable service unit with pressure regulator 3/4" | R 3/4" male
9 2406 0630 | Portable service unit with protection housing and pressure regulator 1/2" | R 1/2" male
9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4" | R 3/4" male
9 1301 0050 | Open-ended spanner SW14 DIN 894 (for changing tools) |
9 9910 0090 | Carrying case |
9 9902 0020 | Pneumatic oil 50 ml |
9 9902 0470 | Pneumatic oil 1000 ml |
9 9902 0120 | Multi oil for cleaning and protection |
More accessories on request.

caractéristiques / spécifications techniques

• Order number: 1 5060 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 6 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Free speed: 20,000 rpm
• Exhaust: front
• Length: 276.00 mm
• Connection: R1/4" female
• Noise LpA: 85.9 dB(A)
• Noise LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.3 kg
• Applications: Metal industry and steel construction; Plant and mechanical construction
