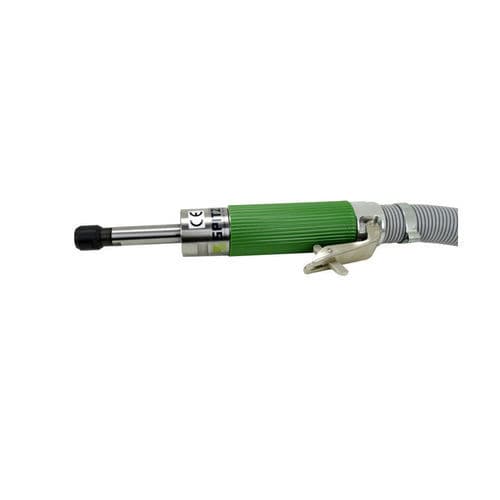

Pneumatic portable grinder 1 5063 0020

diefront exhaust

Product description
This pneumatic die grinder with a 50 mm spindle extension is designed to access inaccessible spots such as blind holes and narrow casting channels. It features lever-valve actuation, front exhaust and a 1/4" collet suitable for rotary tooling. Typical applications include metal industry, steel construction and plant and mechanical construction.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 1/4"
• Spindle extension: 50 mm
• Exhaust: Front

Technical Data
ORDER NO.: 1 5063 0020
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Lever valve
Tool holder: Collet dia. 1/4"
Spindle extension: 50.00 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: front
Length: 292.00 mm
Connection: R1/4" female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.9 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.3 kg
Fields of application: Metal industry and steel construction; Plant and mechanical construction

Accessories

• ORDER NO. 9 3610 0180 — Hose 2.5 m with lubricator — Connection: R 1/4" male
• ORDER NO. 9 3610 0200 — Hose 2.5 m without lubricator — Connection: R 1/4" male
• ORDER NO. 9 2113 0260 — Plug connection — Connection: R 1/4" male
• ORDER NO. 9 2115 0090 — Plug nipple — Connection: R 1/4" male
• ORDER NO. 9 2406 0020 — Service unit with filter and lubricator — Connection: R 1/4" male
• ORDER NO. 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — Connection: R 1/4" male
• ORDER NO. 9 2406 0630 — Service unit with protection housing 1/2" — Connection: R 1/4" male
• ORDER NO. 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)

Technical specifications

• ORDER NO.: 1 5063 0020
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Lever valve
• Tool holder: Collet dia. 1/4"
• Spindle extension: 50.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 292.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.3 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
