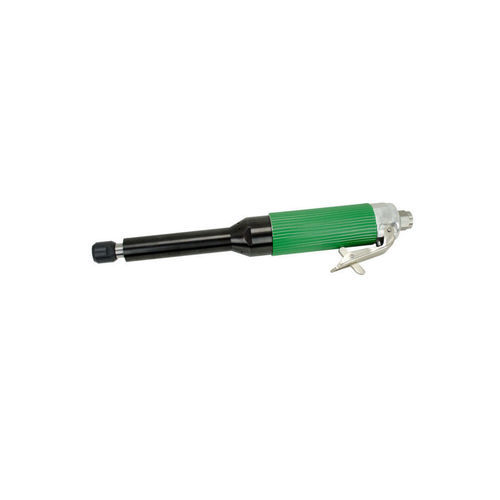

Pneumatic portable grinder 1 5065 0050

front exhaustextendabledie

Product overview
The pneumatic die grinder with a 100 mm spindle extension is designed to reach deep casting channels and narrow access areas. It features lever-valve control, front exhaust and a collet tool holder for 8 mm tools, making it suitable for metalworking operations.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 8 mm
• Spindle extension: 100 mm
• Exhaust: Front

Technical data

• Order no.: 1 5065 0050
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Lever valve
• Tool holder: Collet dia. 8 mm
• Spindle extension: 100.00 mm
• Air consumption: 0.85 m3/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 342.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.6 dB(A)
• Vibration level: <2.5 m/s2
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
