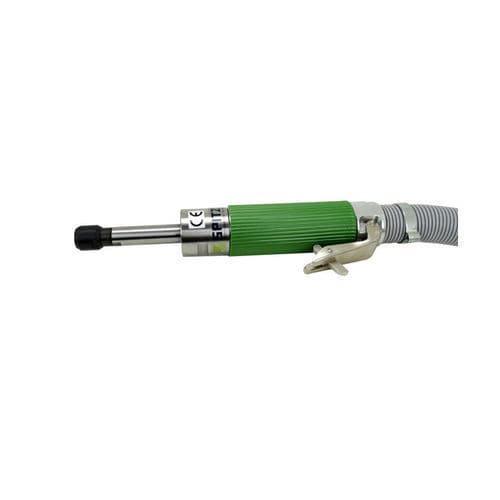

Pneumatic portable grinder 1 5063 0050

diefront exhaust

Product overview
The 50 mm spindle extension of this pneumatic die grinder enables access to confined or blind areas such as blind holes and casting channels.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 8 mm
• Spindle extension: 50 mm
• Exhaust: Front

Technical data

• ORDER NO.: 1 5063 0050
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Lever valve
• Tool holder: Collet dia. 8 mm
• Spindle extension: 50.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 292.00 mm
• Connection: R1/4"female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.3 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction

Accessories
Grinding pins, truncated cones, end mills and other tools are available on request.

Miscellaneous accessories

• 9 3610 0180 — Hose 2.5 m with lubricator — R 1/4"male
• 9 3610 0200 — Hose 2.5 m without lubricator — R 1/4"male
• 9 2113 0260 — Plug connection — R 1/4"male
• 9 2115 0090 — Plug nipple — R 1/4"male
• 9 2406 0020 — Service unit with filter and lubricator — R 1/4"male
• 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — R 1/4"male
• 9 2406 0630 — Service unit with protection housing 1/2" — R 1/4"male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)
