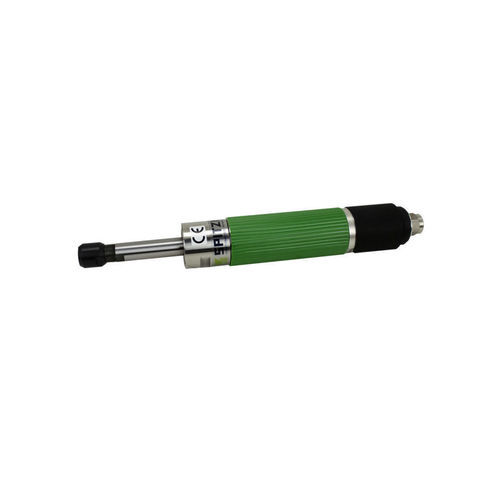

Pneumatic portable grinder 1 5062 0020

finishing

Product overview
The 50 mm spindle extension provides access to confined or blind locations such as blind-hole drillings and casting channels, enabling machining and finishing tasks in metalworking and mechanical engineering environments.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Tool holder: Collet dia. 1/4"
• Spindle extension: 50 mm
• Exhaust: Front

Technical data

• ORDER NO.: 1 5062 0020
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 1/4"
• Spindle extension: 50.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 326.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction

Accessories
Tools: Grinding pins, truncated cones, end mills and other tools are available on request.

• 9 3610 0180 | Hose 2.5 m with lubricator | R 1/4" male
• 9 3610 0200 | Hose 2.5 m without lubricator | R 1/4" male
• 9 2113 0260 | Plug connection | R 1/4" male
• 9 2115 0090 | Plug nipple | R 1/4" male
• 9 2406 0260 | Portable service unit with pressure regulator 3/4" | R 3/4" male
• 9 2406 0630 | Portable service unit with protection housing and pressure regulator 1/2" | R 1/2" male
• 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4" | R 3/4" male
• 9 1301 0050 | Open-ended spanner SW14 DIN 894 (for changing tools)
• 9 9910 0090 | Carrying case
• 9 9902 0020 | Pneumatic oil 50 ml
• 9 9902 0470 | Pneumatic oil 1000 ml
• 9 9902 0120 | Multi oil for cleaning and protection

Fields of application

• Metal industry and steel construction
• Plant and mechanical construction
