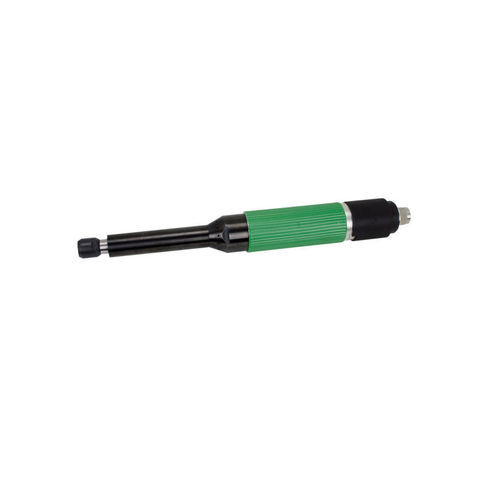

Pneumatic portable grinder 1 5064 0050

diecompactfront exhaust

Product description
The 100 mm spindle extension of this pneumatic die grinder enables access into deep casting channels and tight work zones. Designed for metalworking and mechanical engineering, it combines a compact body with a front exhaust for operator comfort.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Tool holder: Collet dia. 8 mm
• Spindle extension: 100 mm
• Exhaust: Front

Technical Data
ORDER NO.: 1 5064 0050
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder: Collet dia. 8 mm
Spindle extension: 100.00 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: front
Length: 376.00 mm
Connection: R1/4" female
Noise level LpA: 90.7 dB(A)
Noise level LWA: 101.7 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.4 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories
Tools: Grinding pins, truncated cones, end mills and other tools are available on request.
Miscellaneous Accessories:
9 3610 0180 | Hose 2.5 m with lubricator | R 1/4" male
9 3610 0200 | Hose 2.5 m without lubricator | R 1/4" male
9 2113 0260 | Plug connection | R 1/4" male
9 2115 0090 | Plug nipple | R 1/4" male
9 2406 0020 | Service unit with filter and lubricator | R 1/4" male
9 2406 0110 | Service unit with filter, lubricator and pressure regulator | R 1/4" male
9 2406 0630 | Service unit with protection housing 1/2" | R 1/4" male
9 1301 0050 | Open-ended spanner SW14 DIN 894 (for changing tools)
More accessories on request.

Characteristics / Technical specifications

• ORDER NO.: 1 5064 0050
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type / Actuation: Twist throttle
• Tool holder: Collet dia. 8 mm
• Spindle extension: 100.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 376.00 mm
• Connection: R1/4" female
• Noise level LpA: 90.7 dB(A)
• Noise level LWA: 101.7 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
