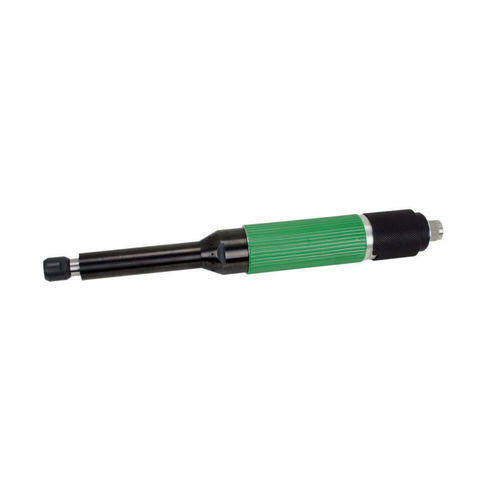

Pneumatic portable grinder 1 5064 0020

precisionindustrialdie

Product description
The 100 mm spindle extension of this pneumatic die grinder enables access to deep casting channels and confined workspaces. It is designed for metal industry and steel construction as well as plant and mechanical engineering tasks that require precise grinding and machining.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Tool holder: Collet dia. 1/4"
• Spindle extension: 100 mm
• Exhaust: Front

Technical Data
ORDER NO.: 1 5064 0020
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder: Collet dia. 1/4"
Spindle extension: 100.00 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: front
Length: 376.00 mm
Connection: R1/4" female
Noise level LpA: 90.7 dB(A)
Noise level LWA: 101.7 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.4 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories

• Tools: Grinding pins, truncated cones, end mills and other tools are available on request.

Miscellaneous accessories (selection)
9 3610 0180 — Hose 2.5 m with lubricator — R 1/4" male
9 3610 0200 — Hose 2.5 m without lubricator — R 1/4" male
9 2113 0260 — Plug connection — R 1/4" male
9 2115 0090 — Plug nipple — R 1/4" male
9 2406 0020 — Service unit with filter and lubricator — R 1/4" male
9 2406 0110 — Service unit with filter, lubricator and pressure regulator — R 1/4" male
9 2406 0630 — Service unit with protection housing 1/2" — R 1/4" male
9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)

Specifications

• ORDER NO.: 1 5064 0020
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 1/4"
• Spindle extension: 100.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 376.00 mm
• Connection: R1/4" female
• Noise level LpA: 90.7 dB(A)
• Noise level LWA: 101.7 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
