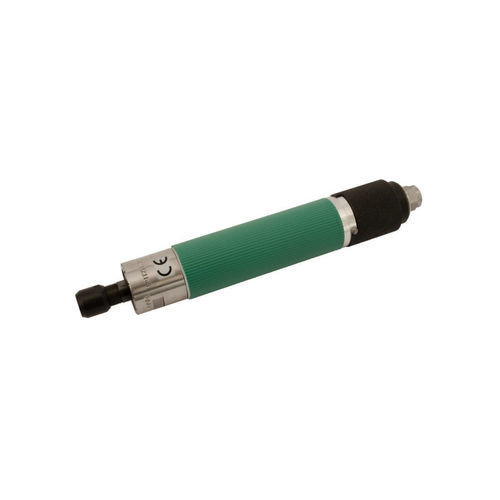

Pneumatic portable grinder 1 5060 0020

precisiondiecompact

Product description
Compact lightweight pneumatic die grinder with a 1/4" collet for standard grinding and cutting consumables. Designed for metalworking and mechanical construction, it features a front exhaust and a twist-throttle control for precise speed regulation.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 1/4"
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Free speed: 20,000 rpm
• Exhaust connection: Front
• Length: 276 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A); Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.3 kg

Accessories

• 9 3610 0180 — Hose 2.5 m with lubricator — R 1/4" male
• 9 3610 0200 — Hose 2.5 m without lubricator — R 1/4" male
• 9 2113 0260 — Plug connection — R 1/4" male
• 9 2115 0090 — Plug nipple — R 1/4" male
• 9 2406 0260 — Portable service unit with pressure regulator 3/4" — R 3/4" male
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2" — R 1/2" male
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4" — R 3/4" male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)
• 9 9910 0090 — Carrying case
• 9 9902 0020 — Pneumatic oil 50 ml
• 9 9902 0470 — Pneumatic oil 1000 ml
• 9 9902 0120 — Multi oil for cleaning and protection

Technical Data
ORDER NO.: 1 5060 0020
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder: Collet dia. 1/4"
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: Front
Length: 276.00 mm
Connection: R1/4" female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.9 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.3 kg

Applications

• Metal industry and steel construction
• Plant and mechanical construction
