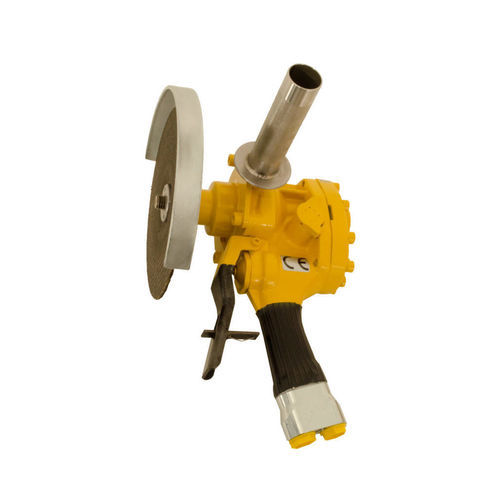

Hydraulic portable grinder 1 2060 0010

vertical

Product description
The hydraulic vertical grinder 1 2060 0010 is designed for heavy rough-grinding, cutting and underwater operations. It delivers high no-load speed in a compact construction and is suitable for use in plant engineering, metal and steel construction and underwater work.

Main features

• Power source: Hydraulic
• Working pressure: 90-140 bar
• Control: Lever valve
• No-load speed: 3,600 rpm
• Tool arbor: ø 22.20 mm / 5/8-11UNC
• Max disc Ø (underwater): 230.00 mm
• Underwater-capable

Technical data
Order number: 1 2060 0010
Power source: Hydraulic
Working pressure: 90-140 bar
Control: Lever valve
Max disc Ø (underwater): 230.00 mm
Arbor/thread: 22.20 / 5/8-11UNC mm
Flow rate: 20-45 l/min
Power: 3.50 kW
No-load speed: 3,600 rpm
Connection: SAE Port No.8 (3/4x16UNF-2B) mm
Hydraulic hose connection: Flat-Star A250-OM/OF-1/2"BSP
Hydraulic fluid: Hydraulic oil
Fluid circuit: Open circuit
Oil filtration: ISO cleanliness 20/18/13
Oil temperature: -34 to +82 °C
Oil viscosity: >13 centistokes
Sound pressure level LpA: 98.0 dB(A)
Sound power level LWA: 107.0 dB(A)
Vibration value: 3.0 m/s²
Weight: 5.8 kg
Application / sector: Plant & machinery engineering; Metal industry & steel construction; Underwater operations

Accessories
Tools

• Roughing discs, cutting discs, flap discs, fiber discs and twisted cup brushes available on request.

Other accessories
9 1301 0100 | Open-end wrench DIN 894 | SW 24
9 1417 0080 | Two-hole nut driver | 11-60 (Ø 4) mm
9 9910 0070 | Transport case

Characteristics / technical specifications

• Power source: Hydraulic
• Working pressure: 90-140 bar
• Flow rate: 20-45 l/min
• Power: 3.50 kW
• No-load speed: 3,600 rpm
• Max disc Ø (underwater): 230.00 mm
• Arbor/thread: 22.20 / 5/8-11UNC mm
• Weight: 5.8 kg
• Sound pressure level LpA: 98.0 dB(A)
• Sound power level LWA: 107.0 dB(A)
• Vibration value: 3.0 m/s²
