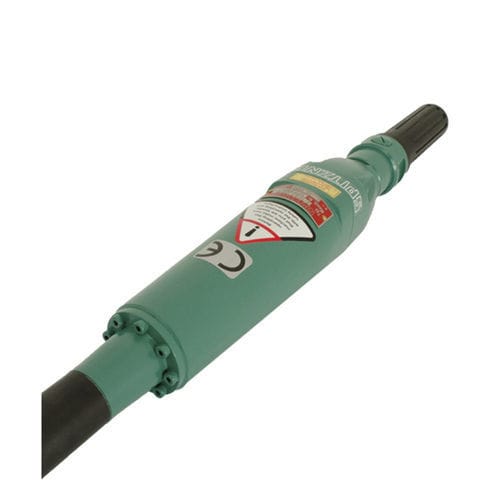

Pneumatic portable grinder 1 1465 0010

industrial

Product overview
The pneumatic axial grinder provides up to 10,000 rpm for high material removal and is designed for use in metalworking and plant/mechanical construction. The machine can be fitted with optional extension necks and includes a tool holder (M12) for form grinding bodies up to 50 mm diameter.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Speed (free): 10,000 rpm
• Tool holder: for form grinding bodies, dia. max. 50 mm, M12

Technical Data
ORDER NO.: 1 1461 0040
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder for: form grinding bodies, dia. max. 50 mm, M12
Neck dia.: 30.00 mm
Air consumption: 1.50 m³/min
Power: 1.25 kW
Speed (free): 10,000 rpm
Length: 1,010.00 mm
Connection: R1/2" female
Noise level LpA: 88.5 dB(A)
Vibration level: <2.5 m/s²
Weight: 5.0 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories
Extensions

• ORDER NO. 1 1450 7930 - Neck dia.: 30.00 - Length: 250.00 mm
• ORDER NO. 1 1450 7940 - Neck dia.: 30.00 - Length: 500.00 mm

Miscellaneous Accessories

• 9 2406 0260 - Service unit (hand-held) with pressure regulator R 3/4" and claw coupling
• 9 2406 0630 - Service unit with protection housing R 1/2" male
• 9 3610 0410 - Service unit with protection housing R 1/2" male
• 9 3610 0420 - Pneumatic hose ID 15 mm, 2.5 m length, complete with claw coupling screwable
• 9 2101 0010 - Claw coupling, metal sealing, R 1/2" male
• 9 2102 0020 - Claw coupling, metal sealing, R 1/2" male

Characteristics / Technical specifications

• Order number: 1 1461 0040
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Power: 1.25 kW
• Speed (free): 10,000 rpm
• Air consumption: 1.50 m³/min
• Neck diameter: 30.00 mm
• Tool holder: for form grinding bodies, dia. max. 50 mm, M12
• Length: 1,010.00 mm
• Connection: R1/2" female
• Noise level LpA: 88.5 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.0 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
