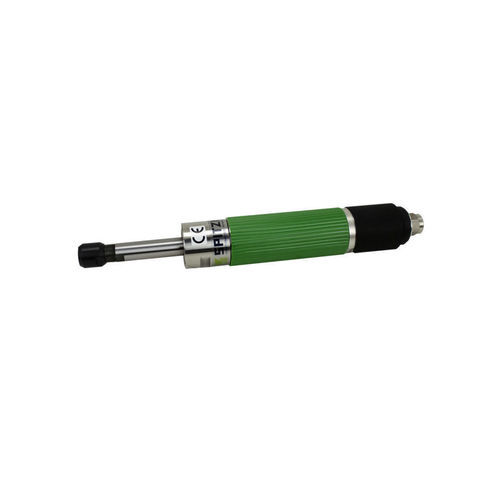

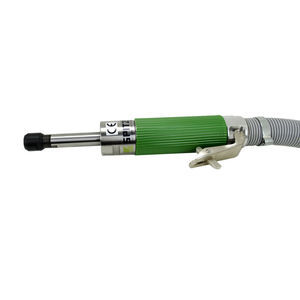

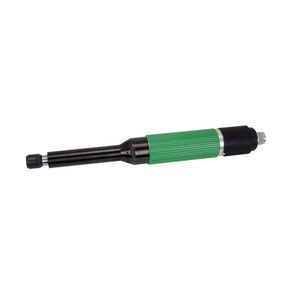

Pneumatic portable grinder 1 5062 0010

precisiondieextendable

Product description
The pneumatic die grinder with a 50 mm spindle extension is designed to reach confined and blind areas such as blind-hole drillings and casting channels. Its twist-throttle control and 6 mm collet allow precise attachment of grinding and cutting tools for finishing, deburring and light machining tasks in metalworking and mechanical engineering.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Tool holder: Collet dia. 6 mm
• Spindle extension: 50 mm
• Exhaust: Front

Technical data

• ORDER NO.: 1 5062 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet diameter 6 mm
• Spindle extension: 50.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 326.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction

Tools

• Grinding pins, truncated cones, end mills and other tools are available on request.

Miscellaneous accessories

• 9 3610 0180 — Hose 2.5 m with lubricator — Connection: R 1/4" male
• 9 3610 0200 — Hose 2.5 m without lubricator — Connection: R 1/4" male
• 9 2113 0260 — Plug connection — Connection: R 1/4" male
• 9 2115 0090 — Plug nipple — Connection: R 1/4" male
• 9 2406 0260 — Portable service unit with pressure regulator 3/4" — Connection: R 3/4" male
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2" — Connection: R 1/2" male
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4" — Connection: R 3/4" male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)
• 9 9910 0090 — Carrying case
• 9 9902 0020 — Pneumatic oil 50 ml
• 9 9902 0470 — Pneumatic oil 1000 ml
• 9 9902 0120 — Multi oil for cleaning and protection
• More accessories on request.

Specifications

• Order number: 1 5062 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type / Actuation: Twist throttle
• Tool holder: Collet diameter 6 mm
• Spindle extension: 50.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Free speed: 20,000 rpm
• Exhaust connection: front
• Length: 326.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.9 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
