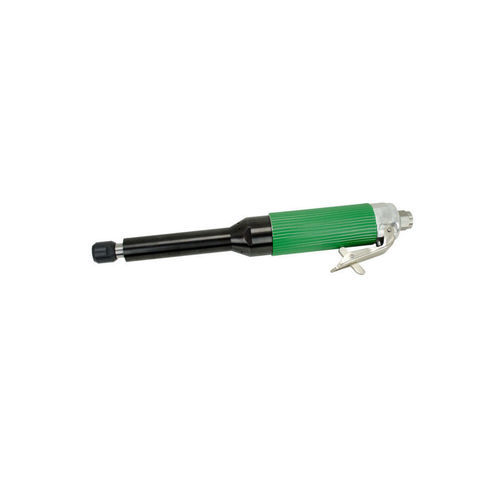

Pneumatic portable grinder 1 5065 0020

front exhaust

Product description
The 100 mm spindle extension of this pneumatic die grinder enables access to deep casting channels and recessed work areas. Designed for metal industry and steel construction, the tool features lever-valve actuation, a 1/4" collet and front exhaust for directed airflow.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 1/4"
• Spindle extension: 100 mm
• Exhaust: Front

Accessories

• Grinding pins, truncated cones, end mills and other tools available on request.
• Miscellaneous accessories:
• 9 3610 0180 — Hose 2.5 m with lubricator — R 1/4" male
• 9 3610 0200 — Hose 2.5 m without lubricator — R 1/4" male
• 9 2113 0260 — Plug connection — R 1/4" male
• 9 2115 0090 — Plug nipple — R 1/4" male
• 9 2406 0020 — Service unit with filter and lubricator — R 1/4" male
• 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — R 1/4" male
• 9 2406 0630 — Service unit with protection housing 1/2" — R 1/4" male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)
• More accessories on request.

Technical Data
Order no.: 1 5065 0020
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Lever valve
Tool holder: Collet dia. 1/4"
Spindle extension: 100.00 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: Front
Length: 342.00 mm
Connection: R1/4" female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.6 dB(A)
Vibration level: < 2.5 m/s²
Weight: 1.4 kg
Fields of application: Metal industry and steel construction; Plant and mechanical construction
