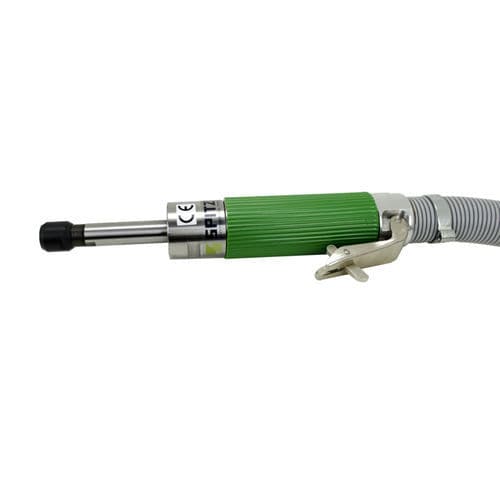

Pneumatic portable grinder 1 5063 0010

precisiondiefront exhaust

Short description
The 50 mm spindle extension of this pneumatic die grinder provides access to hard-to-reach areas such as blind-hole drillings and casting channels. Designed for precision grinding and deburring in metalworking and mechanical engineering applications.

Identifiers
Order Number: 1 5063 0010

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 6 mm
• Spindle extension: 50 mm
• Exhaust: Front

Technical Data
ORDER NO.: 1 5063 0010
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Lever valve
Tool holder: Collet dia. 6 mm
Spindle extension: 50.00 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: front
Length: 292.00 mm
Connection: R1/4"female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.9 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.3 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories

• Grinding pins, truncated cones, end mills and other tools available on request
• Hose 2.5 m with lubricator — Connection: R 1/4"male
• Hose 2.5 m without lubricator — Connection: R 1/4"male
• Plug connection — Connection: R 1/4"male
• Plug nipple — Connection: R 1/4"male
• Service unit with filter and lubricator — Connection: R 1/4"male
• Service unit with filter, lubricator and pressure regulator — Connection: R 1/4"male
• Service unit with protection housing 1/2" — Connection: R 1/4"male
• Open-ended spanner SW14 DIN 894 (for changing tools)
• More accessories on request
