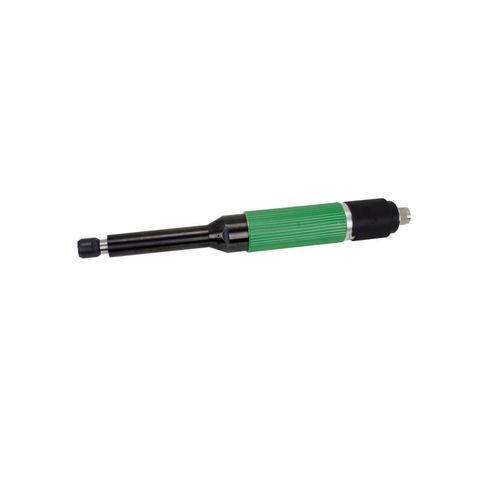

Pneumatic portable grinder 1 5064 0010

for deburringcompactfront exhaust

Overview
The pneumatic die grinder with 100 mm spindle extension is engineered to reach deep casting channels and narrow bores in metal components. Its compact length and front exhaust facilitate handling in assembly and fabrication environments.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation / Valve type: Twist throttle
• Tool holder: Collet dia. 6 mm
• Spindle extension: 100 mm
• Exhaust: Front

Technical Data

• ORDER NO.: 1 5064 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 6 mm
• Spindle extension: 100.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 376.00 mm
• Connection: R1/4" female
• Noise level LpA: 90.7 dB(A)
• Noise level LWA: 101.7 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg

Fields of application

• Metal industry and steel construction
• Plant and mechanical construction

Accessories
Tools

• Grinding pins, truncated cones, end mills and other rotary tools for deburring and finishing.

Miscellaneous Accessories

• ORDER NO.: 9 3610 0180 — Hose 2.5 m with lubricator — Connection: R 1/4" male
• ORDER NO.: 9 3610 0200 — Hose 2.5 m without lubricator — Connection: R 1/4" male
• ORDER NO.: 9 2113 0260 — Plug connection — Connection: R 1/4" male
• ORDER NO.: 9 2115 0090 — Plug nipple — Connection: R 1/4" male
• ORDER NO.: 9 2406 0020 — Service unit with filter and lubricator — Connection: R 1/4" male
• ORDER NO.: 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — Connection: R 1/4" male
• ORDER NO.: 9 2406 0630 — Service unit with protection housing 1/2" — Connection: R 1/4" male
• ORDER NO.: 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)

Technical specifications

• Order no.: 1 5064 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder: Collet dia. 6 mm
• Spindle extension: 100.00 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: front
• Length: 376.00 mm
• Connection: R1/4" female
• Noise level LpA: 90.7 dB(A)
• Noise level LWA: 101.7 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
